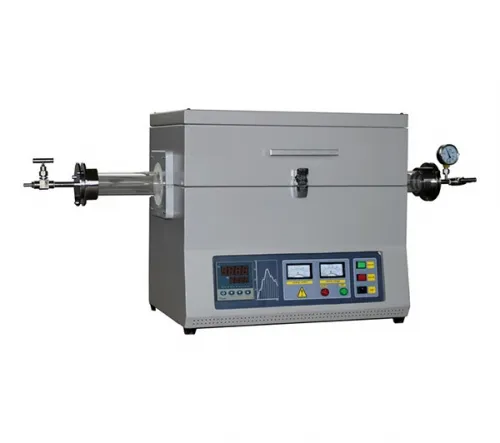

HS-O1200X Tube Furnace

Furnace Structure1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving3.Equipped with double cooling fan, to make sure furnace body temperature low than 60℃Model No.HS-O1200XDisplayLED but

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Furnace Structure	1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving3.Equipped with double cooling fan, to make sure furnace body temperature low than 60℃
Model No.	HS-O1200X
Display	LED button controller or LCD touch panel( 5” &7” for your choice)
Limiting temperature	1200℃
Working temperature	≤1150℃
Heating rate	0-20℃/min, adjustable
Heating zone length	400mm
Heating zone	Single zone
Max outer tube diameter	50mm,60mm,80mm,100mm for choice
Tube length for use	1000mm
Temperature accuracy	± 1℃
Heating element	Fe-Cr-Al alloy adopt by Mo
Thermal couple	K TYPE
Max Power	2.5kw
Temperature control	30 steps programmable PID control
Chamber material	Alumina fiber
Over-temperature alarm	Yes
Over-current alarm	Yes
Working voltage: 220V 50Hz, or as customized
