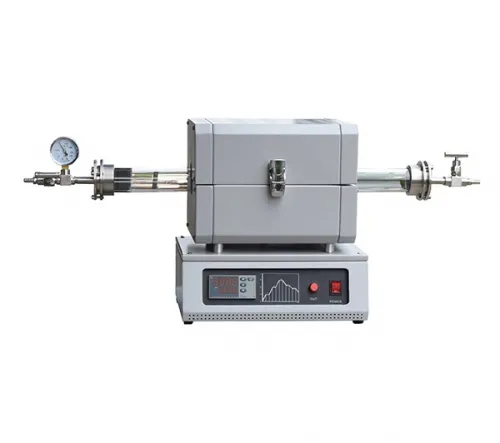

HS-O1200-50ICS Tube Furnace

Application of horizontal mini tube furnace1.CVD experiment2.Preparation of carbon nanotubes3.Growth of graphene4.Crystalline silicon substrate coating5.Diffusion welding for metal materials6.Heat treatment under the vacuum of atmosphere surroundingsFurnace Structure

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Application of horizontal mini tube furnace
1.CVD experiment
2.Preparation of carbon nanotubes
3.Growth of graphene
4.Crystalline silicon substrate coating
5.Diffusion welding for metal materials
6.Heat treatment under the vacuum of atmosphere surroundings

Furnace Structure	1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving
Model No.	HS-O1200-50ICS
Display	LED button controller
Limiting temperature	1200℃
Working temperature	≤1150℃
Heating rate	0-20℃/min
Heating zone length	200mm
Heating zone	Single zone
Max outer tube diameter	50mm
Tube length for use	450mm
Temperature accuracy	± 1℃
Heating element	Fe-Cr-Al alloy adopt by Mo
Thermal couple	K TYPE
Max Power	750w
Temperature control	30 steps programmable PID control
Chamber material	Alumina fiber
Over-temperature alarm	Yes
Over-current alarm	Yes
Working voltage: 220V 50Hz, or as customized
