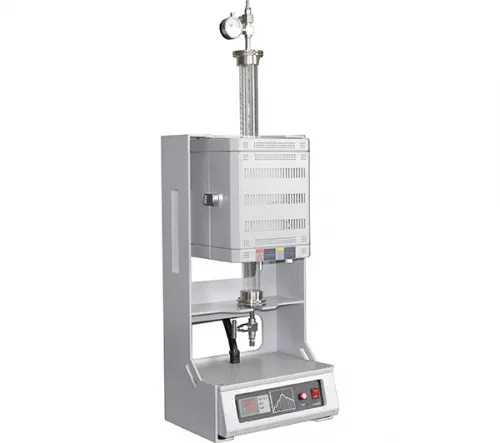

HS-V1200-50IC Tube Furnace

Featrues of Split Vertical Tube Furnace1. Double shell casing with three cooling fans2. high purity quartz tube, resistance high temperature 1200 ℃3. Programmable and PID automatic control4.High purity alumina fibrous chamber material insulation for energy saving5.Split cover enable faste

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Featrues of Split Vertical Tube Furnace
1. Double shell casing with three cooling fans
2. high purity quartz tube, resistance high temperature 1200 ℃
3. Programmable and PID automatic control
4.High purity alumina fibrous chamber material insulation for energy saving
5.Split cover enable faster cooling and easy operate

Technical parmaters

Model	HS-V1200-50IC
Limiting temperature	1200℃
Working temperature	≤1150℃
Heating rate	Suggestion 0~20℃/min
Temperature zone	220mm (as customized)
Temperature accuracy	±1℃
Chamber size	Φ50×1000(mm)
Heating element	Iron-Cr-Al wire
Thermal couple	K Type
Temperature control	PID automatic control via SCR power control
Heatingcurves	30 steps programmable
Rated power	2kw
Chamber material	alumina fiber
Constant heating zone	100mm
Working voltage	AC 220V 50-60Hz
Standard accessories	sealed flanges 1 pcs, O rings 4 pcs, quartz tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs
