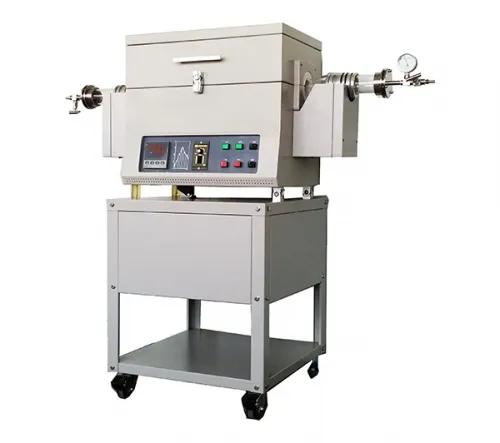

HS-R1200X-100IC Tube Furnace

Specifications:Furnace Construction1.Double shell casing with three cooling fans2.High purity Alumina fibrous insulation for max. energy efficiency3.DCGearmotor drives quartz tube with variable speed 0 -10 RPM4.The furnace can be ele

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Specifications:

Furnace Construction	1. Double shell casing with three cooling fans2. High purity Alumina fibrous insulation for max. energy efficiency3. DC Gear motor drives quartz tube with variable speed 0 - 10 RPM4. The furnace can be electrically tilted up to 30° .5. Split cover enable faster cooling and easy operation.
Heating Zone length	Single Zone: 440mm, in totalConstant temperature zone: 250 mm within +/-1℃
Processing tube	Fused quartz tubeDimension: 100 mm O.D. x 90 mm I.D. x 1000 mm L
Sealing Flange	one pair of 60mm SS sealing flange with needle valves and rotable gas connector is included for immediate use
Gas Fittings	Inlet Fitting: Elbow Push-in connector for 6mm O.D tube; Outlet Fitting: Elbow Push-in connector for 12mm O.D tube,or as customized
Max. Working Temperature	1100°C for continuously1200°C Max for < 1 hours
Temperature Controllers	PID digital temperature controllers with 30 programmable segments
Temperature Uniformity	+/- 1°C in heating Zone
Thermocouple	Omega K type 3mm OD x 6" L with high temperature tolerance (220°C) connector
Tube rotating Speed	0 - 10 RPM variable
Furnace tilt angle	0 - 30°
Chamber pressure	10-2 torr
Power	2.5KW
Voltage	208 - 240V single phase (30 A Breaker required)
Warranty & Certificate	One year limited warranty (consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, replacements are available at related products below.)
Net Weight	85 kg
