Ni-Based Super-alloy High Pressure Hydro-thermal Reactor 1100℃-HS-1100X-RC

Breif IntroductionRC-Ni is reactor made of Ni-Base Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 4Mpa under oxygen or inert gas. A solenoid valve is installed on the flange allows auto-pressure relief control. Temp. Control and Pr

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Breif Introduction

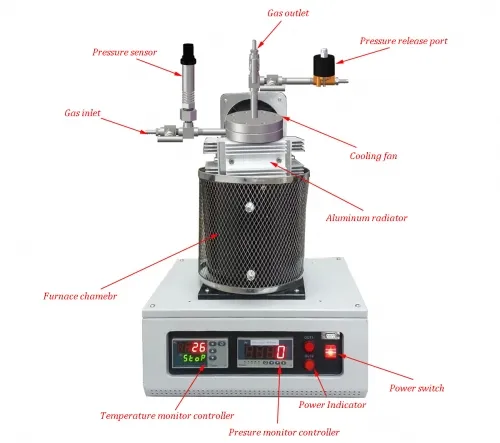

RC-Ni is reactor made of Ni-Base Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 4Mpa under oxygen or inert gas. A solenoid valve is installed on the flange allows auto-pressure relief control. Temp. Control and Pressure Real-time Monitoring controller is separately installed.

Model No.	HS-1100X-RC
Pressure vessel	Ni-Based Superalloy, optional at 65&100m
Sealing flange	Air cold flange via aluminum heat radiator
Reactor Capacity	55 mm OD x 20 mm ID x 214 mm, 65 ml 65mm OD x 25mm ID x 210 mm, 100 ml
Temperature Control	Heating range:RT - 1100 °C Max. Control:PID with 30 segment programmable Temperature accuracy: +/- 1°C Heating rate: <=10°C/min
Thermocouple	K type
Working pressure	36 Mpa (5292 PSI) Max at 500°C 24 Mpa (3528 PSI) Max. at 800°C 14 Mpa (2116 PSI) Max. at 900°C 7 Mpa (1058 PSI) Max. at 1000°C 4 Mpa (588 PSI) Max. at 1100°C
Pressure Monitoring	high-pressure sensor (measurement Range up to 250 bars)
Working voltage	AC 220V, 50Hz
