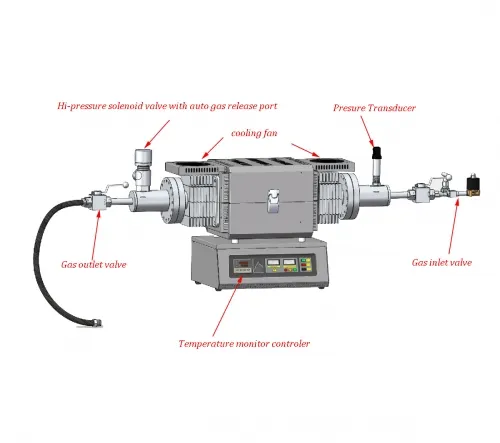

Laboratory Compact High Pressure Gas Tube Furnace (HIP) with Super alloy tube-HS-O1200S-HP

Application: High temperature high pressure sintering furnace is mainly used for special functional ceramics powder or certain density sample’s heat treatment which need high pressure about 20 MPa, to realize ceramic material high pressure sintering.Technical Parameters

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Application:
High temperature high pressure sintering furnace is mainly used for special functional ceramics powder or certain density sample’s heat treatment which need high pressure about 20 MPa, to realize ceramic material high pressure sintering.

Technical Parameters

Model No.	HS-O1200S-HP
Tube material	Ultra high temperature alloy
Tube diameter	Ф50mm
Tube length	650mm
Heating length	200mm
Constant heating zone	100mm
Sealing method	Pressure flange
Pressure measured	Semiconductor pressure gauge
Over-pressure protective	Safety relief valve
Pressure adjust	Manual and Auto adjustable
Over temperature alarm	Over-temperature power off
Working temperature	≦1100℃
Working pressure	≦20MPa @800℃ ≦12MPa @900℃ ≦6MPa @1000℃ ≦4MPa @1100℃
Temper accuracy	±1℃
Temper control mode	AI-PID 30Programmable control
Display	High light LED Button Panel
Working gas	N2,Ar2,O2 and other non-corrosive gas
Power supply	AC220V 50Hz/60Hz
Warranty	12 month warranty with whole life technical supporting
