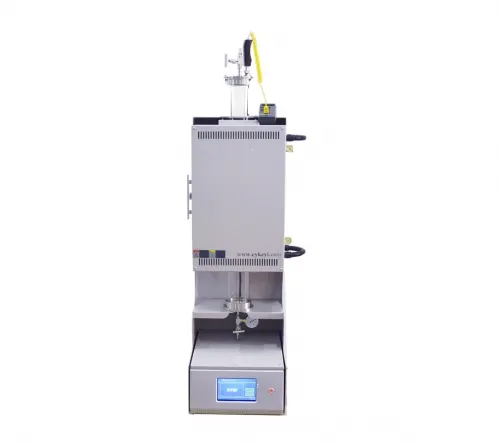

Laboratory 1200℃ Vacuum Vertical Tube Furnace for Fluidized Bed-HS-V1200-60IT

Featrues1.Double shell casing with three cooling fans2.High purity quartz tube, resistance high temperature 1200 ℃3.Programmable and PID automatic control4.High purity alumina fibrous chamber material insulation for energy saving5.Split cover enable faster cooling and easy ope

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Featrues
1.Double shell casing with three cooling fans
2.High purity quartz tube, resistance high temperature 1200 ℃
3.Programmable and PID automatic control
4.High purity alumina fibrous chamber material insulation for energy saving
5.Split cover enable faster cooling and easy operate

Model No.	HS-V1200-60IT
Display	LCD Touch Panel
Limiting temperature	1200℃
Working temperature	≤1150℃
Heating rate	0-20℃/min
Heating zone length	400mm
Heating zone	Single zone
Tube diameter	50/60/80/100mm
Tube length for use	1000mm
Temperature accuracy	± 1℃
Heating element	Fe-Cr-Al alloy adopt by Mo
Thermal couple	Two unit Thermalcouple 1. One piece K type thermal couple insert the quartz tube to measured inner temperature 2. The other K type thermal couple installed in furnace chamber to measured chamber temperature
Max Power	2.5kw
Temperature control	30 steps programmable PID control
Chamber material	Alumina fiber
Over-temperature alarm	Yes
Over-current alarm	Yes
Working voltage: 220V 50Hz, or as customized
