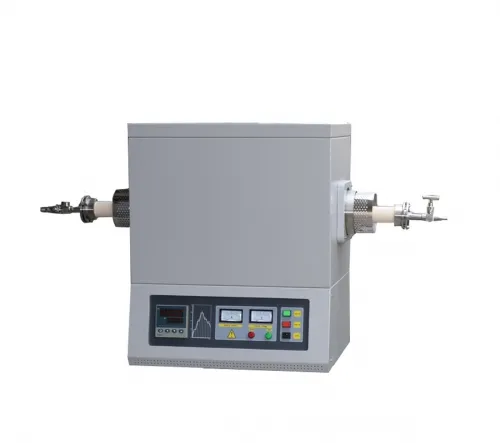

Laboratory 1400℃ high temperature horizontal tube furnace HS-T1400-50IC

Model No.HS-T1400-50ITDisplayLED Digital PanelLimiting temperature1400℃Working temperature≤1300℃Heating rate0-20℃/minHeating Zone length300mm, constant

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Model No.	HS-T1400-50IT
Display	LED Digital Panel
Limiting temperature	1400℃
Working temperature	≤1300℃
Heating rate	0-20℃/min
Heating Zone length	300mm, constant temperature zone:150mm
Quartz tube diameter	OD50*1000mm, 60/80/100/120mm for option
Temperature accuracy	± 1℃
Heating element	SiC rod
Thermal couple	S TYPE
Cooling method	Double layer structure with fan cooling
Temperature control	30 steps programmable PID control
Chamber material	Alumina fiber
Over-temperature alarm	Yes
Over-current alarm	Yes
Sealing flange	S.S vacuum flange
Cooling method	air forced cooling
Main Power	2.5Kw
Working voltage	AC220V,50Hz
