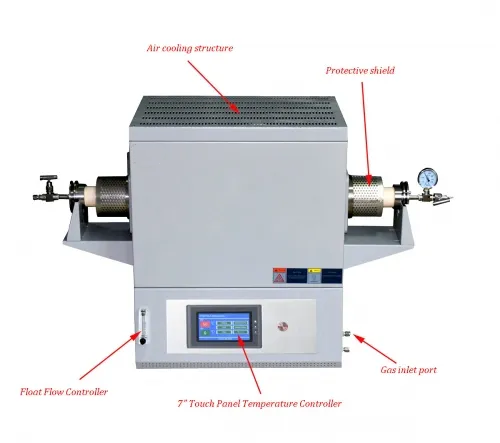

Laboratory 1700℃ Compact Corundum Tube Furnace with 170mm heating zone HS-T1700-50ITS

Model No.HS-T1700-50ITSDisplay7”LCD Touch PanelLimiting temperature1650℃Working temperature≤1600℃Heating rate0-20℃/minHeating Zone length17
Products Inquiry

Product Details

 Model No. HS-T1700-50ITS
 Display 7” LCD Touch Panel
 Limiting temperature 1650℃
 Working temperature ≤1600℃
 Heating rate 0-20℃/min
 Heating Zone length 170mm, constant temperature zone:80mm
 Corundum tube diameter OD50*1000mm, 60/80/100/120mm for option
 Temperature accuracy ± 1℃
 Heating element High Purity MoSi2 Rod
 Thermal couple B TYPE
 Cooling method Double layer structure with fan cooling
 Temperature control 30 steps programmable PID control
 Chamber material Alumina fiber
 Over-temperature alarm Yes
 Over-current alarm Yes
 Sealing flange S.S vacuum flange
 Cooling method air forced cooling
 Gas mixer One way with Float Flow Controller
 Main Power 2.5Kw
 Working voltage AC220V,50Hz
