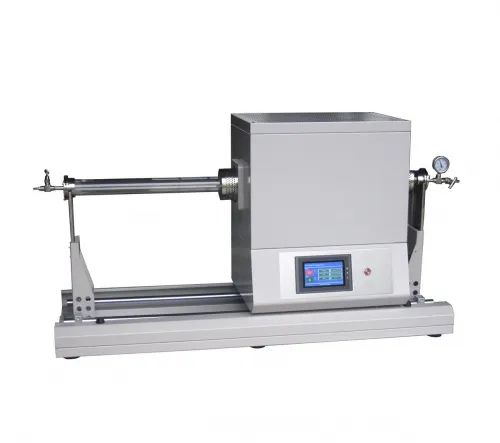

1200 degree RTP tube furnace with sliding rail and PID control touch panel HS-O1200-50IRTP

Model No.HS-O1200-50IRTPDisplay7”LCD Touch PanelLimiting temperature1150℃Working temperature≤1100℃Heating rate0-100℃/minHeating Zone length
Products Inquiry

Product Details

 Model No. HS-O1200-50IRTP
 Display 7” LCD Touch Panel
 Limiting temperature 1150℃
 Working temperature ≤1100℃
 Heating rate 0-100℃/min
 Heating Zone length 400mm, constant temperature zone200mm
 Corundum tube diameter OD50*1200mm
 Temperature accuracy ± 1℃
 Heating element Alchrome
 Thermal couple K TYPE
 Cooling method Double layer structure with fan cooling
 Temperature control 30 steps programmable PID control
 Chamber material Alumina fiber
 Over-temperature alarm Yes
 Over-current alarm Yes
 Sealing flange S.S vacuum flange
 Sliding method Manual sliding
 Cooling method air forced cooling
 Gas mixer One way with Float Flow Controller
 Main Power 4.5Kw
 Working voltage AC220V,50Hz
