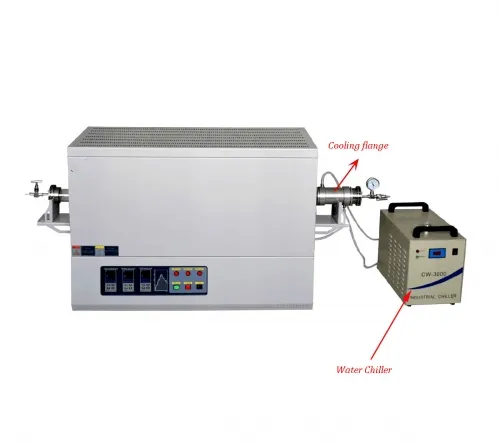

Laboratory 1200℃ heat treatment three zone tube furnace with water cooling flange-HS-T1200-50IIIC

Model No.HS-T1200-50IIICDisplayLED digital gaugeLimiting temperature1150℃Working temperature≤1100℃Heating rate0-20℃/minHeating Zone lengththree heating

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Model No.	HS-T1200-50IIIC
Display	LED digital gauge
Limiting temperature	1150℃
Working temperature	≤1100℃
Heating rate	0-20℃/min
Heating Zone length	three heating zone 200+400+200mm constant temperature zone400mm
Quartz tube diameter	OD50*1200mm
Temperature accuracy	± 1℃
Heating element	Alchrome
Thermal couple	K TYPE
Cooling method	Double layer structure with fan cooling
Temperature control	30 steps programmable PID control
Chamber material	Alumina fiber
Over-temperature alarm	Yes
Over-current alarm	Yes
Sealing flange	S.S vacuum flange
Cooling method	air forced cooling
Gas mixer	One way with Float Flow Controller
Main Power	4.5Kw
Working voltage	AC220V,50Hz
