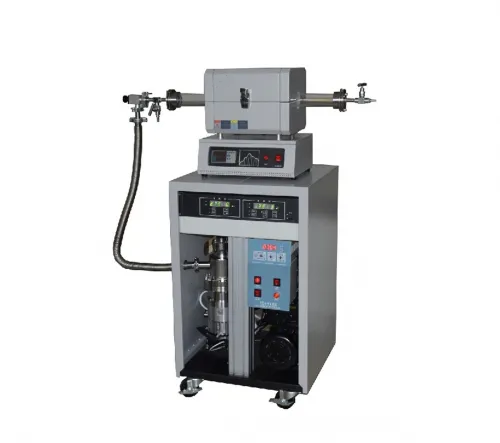

Laboratory 1200℃ High Temperature High Vacuum Tube Furnace HS-O1200S-GZK110

ModelHS-O1200S-GZK110Limiting temperature1200℃Working temperature≤1150℃Heating rateSuggestion 0~20℃/minTemperature zoneSingleTemperature accuracy&plusm

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Model	HS-O1200S-GZK110
Limiting temperature	1200℃
Working temperature	≤1150℃
Heating rate	Suggestion 0~20℃/min
Temperature zone	Single
Temperature accuracy	±1℃
Chamber size	Φ50×700(mm)
Heating element	Imported alloy heating wire
Thermal couple	K Type
Temperature contro	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Imported fiber
Heating zone	200mm
Thermostatic zone	80mm
Tube material	Quartz tube
Sealing type	stainless steel vacuum flange
Tightness	4.03*10-3Pa
Current and voltage Monitoring	Analog galvanometer
Pumping speed	>110
Working temperature	0-1050°c
Starting time	<3 min
Cooling type	fan cooling or water cooling
Rotate speed	42300rpm
Pump connection	KF25 stainless steel Bellows, KF25 clamps, KF25flapper valve
Vacuum meter	mechanical vacuum gauges, or electronic vacuum gauges
Working voltage	220V 50-60Hz
