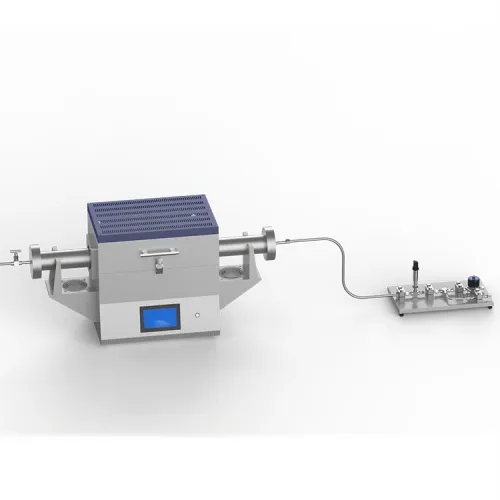

High temperature and high pressure tube furnace HS-HS1200-85I-T

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

High temperature and high pressure tube furnace can realize three functions of automatic stamping, overpressure release and automatic temperature control. It is equipped with process software, which can realize the whole process of data collection during the sintering process, and provide the most authentic and reliable basis for the analysis and research of experimental data.
High temperature and high pressure tube furnace application range:
The device can be widely used in high temperature and high pressure processing of nano materials, high temperature and high pressure sintering of special function ceramics, and the high temperature and high pressure modulation method is used to change the thermal property and electrical conductivity of the materials.

High temperature and high pressure tube furnace technical parameters:

Item	Detail
Model	HS-HS1200-85I-T
Supply voltage	AC220V/110V, 50Hz/60Hz
Working temperature	0～1100℃
Temperature control accuracy	±1℃
Temperature control mode	30 or 50 segment program temperature control
Furnace tube diameter	85mm
Furnace tube length	1000mm
Furnace tube material	Ultra-high temperature alloy
Sealing method	Pressure resistant CF flange
Flange interface	1/4" ferrule connector (Ø8 pagoda-shape connector)
Vacuum	4.4E-3Pa
Pressure measurement	Semiconductor pressure gauge
Overvoltage protection	Safety deflation valve
Pressure regulation	Manual electric free switching
Heating zone	Single heating zone 440mm long
Work pressure	≤20Mpa @800℃ ≤12Mpa @900℃ ≤6Mpa @1000℃ ≤4Mpa @1100℃
Display method	LCD touch screen
Working gas	Non-corrosive gases such as nitrogen, argon, and oxygen
