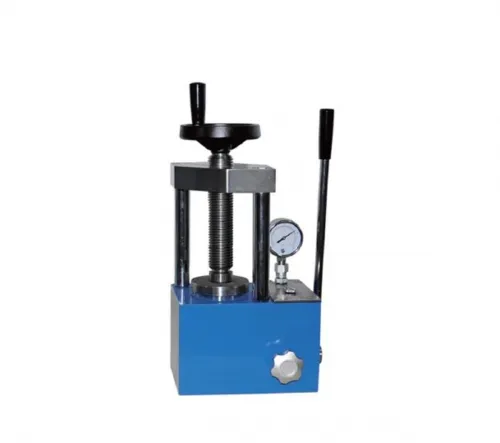

Laboratory compact 5 Tons hydraulic press

Model No.HS-PC-5Pressure gauge0~5T (0~31.4MPa)Piston diameterΦ45mmMain structureAll in one structure, no oil link pointPressure gaugepointer pressure gaugeMax
Products Inquiry

Product Details

 Model No. HS-PC-5
 Pressure gauge 0~5T (0~31.4MPa)
 Piston diameter Φ45mm
 Main structure All in one structure, no oil link point
 Pressure gauge pointer pressure gauge
 Max piston distance 30mm
 Pressure stability ≤1MPa/10min
 Working stage Φ80mm
 Working space 96*130mm
 Outer dimension 225*155*380mm
 Gross Weight 28kg

Pressure conversion
 Real Pressure System Pressure
 0.2T 1.25MPa
 0.4T 2.51MPa
 0.6T 3.77MPa
 0.8T 5.03MPa
 1T 6.28MPa
 2T 12.5MPa
 3T 18.8MPa
 4T 25.1MPa
 5T 31.4MPa
