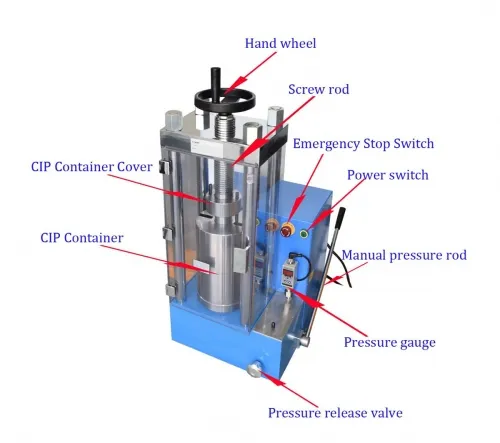

60T compact cold isostatic pressing(CIP) electric hyraulic press HS-PCD-60J

Model No.HS-PCD-60JPressure gauge0~60T (0~34MPa)Piston diameterΦ150mmMain structureAll in one structure, no oil link pointPressure gaugeDigital gauge 0.0~40.0MPa&nb
Products Inquiry

Product Details

 Model No. HS-PCD-60J
 Pressure gauge 0~60T (0~34MPa)
 Piston diameter Φ150mm
 Main structure All in one structure, no oil link point
 Pressure gauge Digital gauge 0.0~40.0MPa
 Max piston distance 50mm
 Way of pressure Electric/Manual
 Supplement pressure Automatic/Manual
 Isostatic pressing chamber 0~300MPa
 Chamber dimension Φ50*150mm
 Outer dimension 405*470*720mm
 Power supply AC220V, 50/60Hz
 Gross weight 200kg

Pressure conversion
 Real Pressure System Pressure Chamber Pressure
 5T 2.83MPa 25MPa
 10T 5.66MPa 50MPa
 15T 8.49MPa 75MPa
 20T 11.3MPa 100MPa
 25T 14.1MPa 125MPa
 30T 16.9MPa 150MPa
 40T 22.6MPa 200MPa
 50T 28.3MPa 250MPa
 60T 34.0MPa 300MPa
