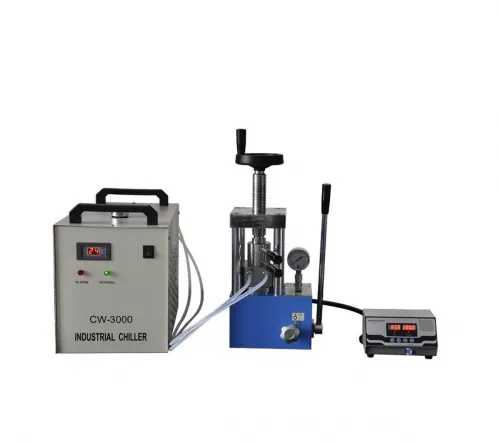

300℃ 24T cylindrical electric heating press with heating mold HS-PCH-600A

Model No.HS-PCH-600APressure gauge0~24T (0~34MPa)Piston diameterΦ95mmMain structureAll in one structure, no oil link pointPressure gaugePointer Pressure GaugeTemperature controlRm~600℃Mold Heating temperRm~300℃Temperature accuracy0.1℃h

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Model No.	HS-PCH-600A
Pressure gauge	0~24T (0~34MPa)
Piston diameter	Φ95mm
Main structure	All in one structure, no oil link point
Pressure gauge	Pointer Pressure Gauge
Temperature control	Rm~600℃
Mold Heating temper	Rm~300℃
Temperature accuracy	0.1℃
heat insulating modes	Imported heat insulating plate
Mold chamber	Inner hole< 20mm
Cooling method	Fast water cooling
Pressure stability	≤1Mpa/10min
Outer dimension	800470415mm
Gross weight	48kg

Pressure conversion

Real pressure	System pressure
1T	1.41MPa
2T	2.82MPa
3T	4.23MPa
5T	7.06MPa
8T	11.3MPa
10T	14.1MPa
15T	21.2MPa
20T	28.3MPa
24T	34MPa
