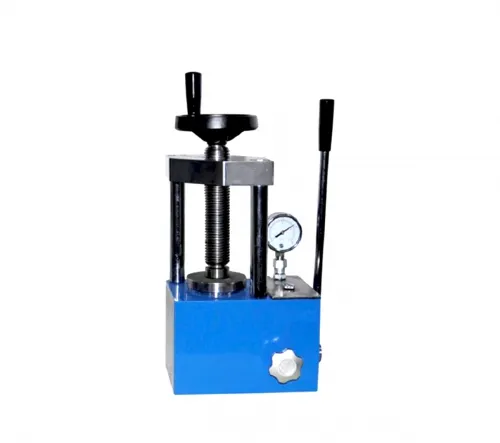

12T manually powder hydraulic press with pointer pressure gauge

Model No.HS-PC-12Pressure gauge0~12T (0~30MPa)Piston diameterΦ70mmMain structureAll in one structure, no oil link pointPressure gaugepointer pressure gauge, can replace digital
Products Inquiry

Product Details

 Model No. HS-PC-12
 Pressure gauge 0~12T (0~30MPa)
 Piston diameter Φ70mm
 Main structure All in one structure, no oil link point
 Pressure gauge pointer pressure gauge, can replace digital gauge
 Max piston distance 30mm
 Pressure stability ≤1MPa/10min
 Working stage Φ80mm
 Working space 96*130mm
 Outer dimension 225*155*380mm
 Gross Weight 28kg

12T Pressure conversion
 Real Pressure System Pressure
 1T 2.5MPa
 2T 5MPa
 3T 7.5MPa
 4T 10MPa
 5T 12.5MPa
 6T 15MPa
 8T 20MPa
 10T 25MPa
 12T 30MPa
