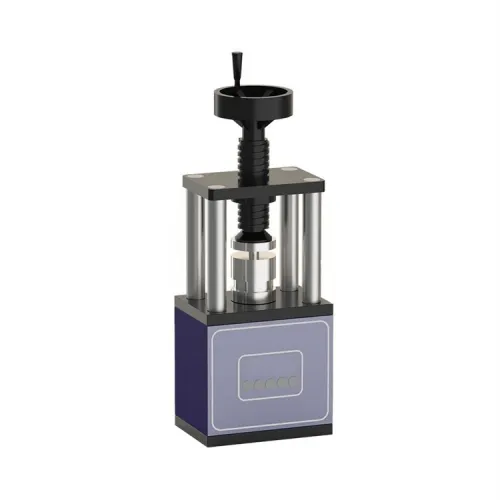

HSKY-5TA is a small oil-free electric press specially designed for use in glove boxes. It can press some oxygen-sensitive materials and the maximum pressure is 50000N. Therefore, the press is driven by a DC24V motor and can be used in a glove box protected by an argon atmosphere. It also completely solves the problem of oil leakage in the glove box of the traditional hydraulic press.

Technical parameters of oil-free electric press:

Working voltage	The host input voltage is 24VDC Equipped with 110-240V AC to 24VDC power adapter. Adapter power: 90W
Pressure drive	adopts DC 24V DC reduction motor drive Motor power: 75W, reduction ratio: 1:20
Pressure control	Pressure display range: 10-50000N Pressure control range: 1000-50000N (adjustable) Constant pressure accuracy: ±50 N
Working space	150mm(L) x 100mm(W) x 120mm(H) (adjustable height) According to different sample sizes, different sizes of pads can be configured
Press stroke	35 mm
Instrument size	240mm(L) x 165mm(W) x 560mm(H)
Instrument weight	About 35kg
