Lab Vacuum Rapid Heated Pressing Furnace up to 1600℃

This machine is a Vacuum Rapid Heated Pressing Furnace (VRHP or RHP) designed for making dense pallets under vacuum or the protective gas environment. A 15 kW temperature controllable induction heater is integrated into the system, which provides sufficient power for rapidly heating the graphite pre
Products Inquiry

Product Details

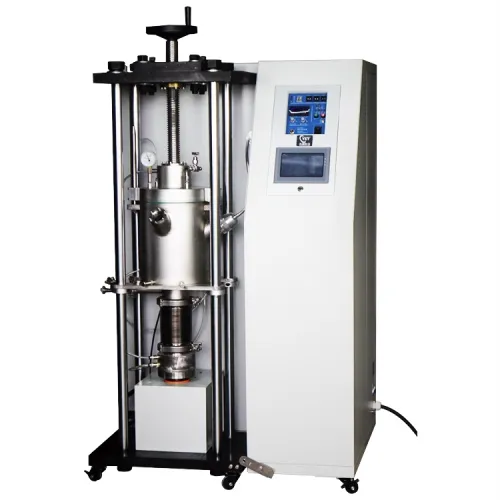

This machine is a Vacuum Rapid Heated Pressing Furnace (VRHP or RHP) designed for making dense pallets under vacuum or the protective gas environment. A 15 kW temperature controllable induction heater is integrated into the system, which provides sufficient power for rapidly heating the graphite pressing die up to 1700 ℃. The Induction coil is built inside of stainless steel vacuum chamber. An electric hydraulic press is inserted from the bottom of the chamber, providing up to 5 tons pressing force.

Technical parameters of Vacuum Rapid Heated Pressing Furnace:
 Max. Pressure 5 metric tons (10 MPa on pressure gauge).
 Hydraulic Electrical Presser ●Piston diameter: 60 mm.
●Vertical move distance: 35 mm.
●Automatic pressure controller
 Induction Heater ●Working voltage: 208 - 240 VAC, 50/60 Hz, three phase (380V three phase available upon request)
●Working current: 40 A (with a 60 A breaker).
●Maximum input power: 15 kW.
●Output frequency: 30 ~ 80 kHz.
●Duty cycle: 80%.
●Max. Working Temperature :  1600 ℃ max duration time: < 30 min.
●Ultimate Temperature: 1700 ℃ <1 min. (This might cause damage of thermocouple)
●Air cooling: fan.
●Protection: water pressure monitoring, high-temperature protection, and overpower protection.
 Temp. Controller ●Working voltage: 208 ~ 240 VAC, single phase.
●Precision digital temperature controller with automatic PID tuning.
●Temperature profile that contains maximum 30 programmable segments to control heating, dwelling, and cooling.
●Overheating and thermocouple failure protection.
●Temperature accuracy: ± 3℃.
●B-type thermocouple.
●Continuous working temperature range: 1000 ~1600℃.
●lower temperature range (300 - 600℃) is available upoon request.
●Maximum heating rate in vacuum (only for 0.5" inner diameter graphite pressing die; without any thermal block):
●4 ℃/s ( 4 mins 50 seconds from room temperature to 1200℃)
●2℃/s ( 5min 40 seconds from 1200 to 1300℃)
●1.5℃/s ( 6min 46 seconds from 1300 to 1400℃)
●1.2℃/s ( 8mins 10 seconds from 1400 to 1500℃)
●1℃/s ( 9mins 50 seconds from 1500 to 1600℃)
●Experimental cooling rate in vacuum:
●3.5℃/s (~ 2 mins 20 seconds from 1600 to 1200℃)
●1.1℃/s (~ 8 mins 10 seconds from 1200 to 800℃)
●0.4℃/s (~ 21 mins 25 seconds from 800 to 500℃)
●0.16℃/s (~ 37 mins 15 seconds from 500 to 350℃)
●0.06℃/s (~ 104 mins 20 seconds from 350 to 150℃)
 Processing chamber & Sealing Flange ●Stainless steel vacuum sealed chamber: 260 × 230 × 320 mm (OD × ID × L).
●Flanges on both ends of the chamber. Flanges have a tunnel for cooling water.
●Equipped with a KF-25D vacuum port, pressure gauge, 1/4" gas inlet port with the stainless steel needle valve.
●The upper flange can be lifted by raising the lead screw which provides the easy access to retrieve the graphite die.
●Requires at least 55 liters per minute water flow.
 Digital Pressure Gauge Maximum pressure display is up to 10 MPa.
 High-Temperature Graphite Pressing Die Set ●Two built-in graphite supporting rods with Max pressure 50 Mpa
●One set of 0.5" (inner diameter) graphite die are included for immediate use.
●Made of high purity graphite by HIP processing,  Max. Load from the hydraulic press is dependent on die 's ID
●0.5"ID   Max.  0.5T
●1.0 ID:   Max.  3T
 Dimensions 800 × 800 × 1300 mm (L × W ×   H).
 Net Weight 350 kg.
 Application Notes Attention: the gas cylinder must have a two-stage pressure regulator to limit the pressure below 3 psi for safe operation.
 Warranty One year limited standard warranty
