Product Details

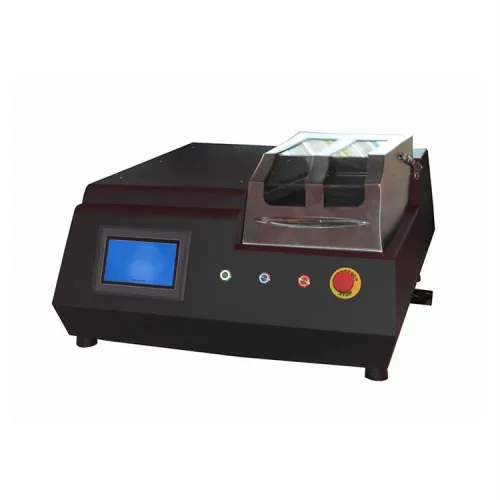

HS-5000B precision cutting machine is suitable for precision non-deformation cutting of metal, electronic components, ceramic materials, crystals, cemented carbide, rock samples, mineral samples, concrete, organic materials, biological materials (tooth, bone) . The device has high positioning accuracy, wide speed adjustment range, strong cutting ability, strong circulation cooling system, preset feed speed, touch screen control display, easy operation and control, and automatic cutting can reduce operator fatigue and ensure sample production. Consistency; large and bright cutting room with safety switch. The up and down distance of the wheel can be adjusted to facilitate cutting after the wheel is worn out. It is one of the ideal equipment for preparing high-quality samples in industrial and mining enterprises and scientific research institutes.

Technical parameters of cutting machine:

Model No.	HS-5000B
Feed speed	0.01-3.00mm/s (adjustment step is 0.01)
Manual feed speed	0-15mm/s
Backward speed	0-15mm/s
Impact cutting distance	0.1-2mm
Large cutting diameter	Ф60mm
Worktable clamping length	150mm
Worktable clamping width	200mm
Cutting blade speed	300-5000rpm
Working stroke	200mm on Y axis
Cutting blade size	200x32x1mm
Cutting Power	3000w
Working voltage	AC110, 60Hz(as your request)
