Product Details

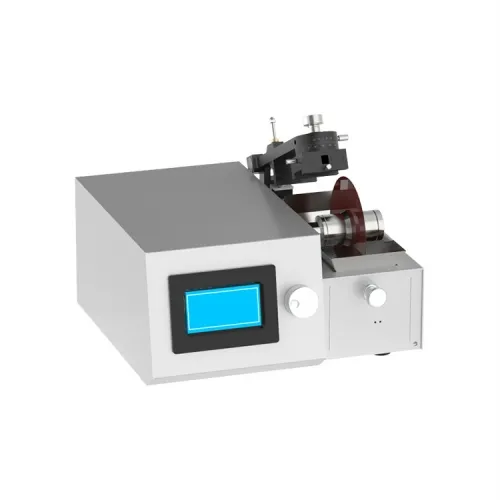

HS-SYJ-150 is a low-speed diamond cutting machine, which equips with the advanced digital micrometer and digital speed display controller, it is the perfect tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness, especially for brittle crystals, ceramics, TEM samples, and even plastic samples. Also this cutting machine can be used for cutting cylindrical cell for failure analysis.

Technical parameters:

Model No.	HS-SYJ-150
Working oltage	AC 110V/220V switchable for worldwide usage 110VDC Motor 8Amp fuse installed
Speed range	0~600rpm with LED Digital display
Cutting width & Depth	The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer. The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm. 32.5mm max. cutting depth (when using 35mm Dia. blade flange)
Diamond blades	Three blades are included for cutting various materials SiC blade: 4" x 0.35 mm x 0.5" Arbor for cutting nonferrous metal materials, such as superalloys. Al2O3 blade: 4" x 0.35 mm x 0.5" Arbor for cutting ferrous metal materials, such as iron and steel. Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic materials
Sample Holder & Mini-vise	Two angles adjustable sample holder is included, please click picture below for the details (max. opening 26mm) One Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max.
Package Dimensions	19"(L) x 15"(W) x 15"(H)
Shipping Weight & Dimension	32 lbs, 18" x 14" x 14"
