Continuous vacuum sintering furnace

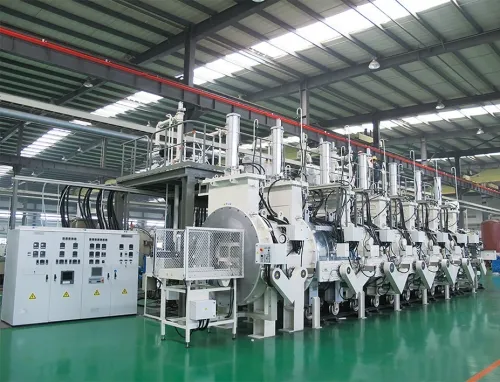

DESCRIPTIONMulti-chamber continuous vacuum sintering furnace This equipment is mainly used for the sintering of rare earth permanent magnets, ceramic materials, tantalum capacitors, composite materials, MIM stainless steel and other products. It can realize multi-chamber control, multi-zone temper
Products Inquiry

Product Details

DESCRIPTION
Multi-chamber continuous vacuum sintering furnace This equipment is mainly used for the sintering of rare earth permanent magnets, ceramic materials, tantalum capacitors, composite materials, MIM stainless steel and other products. It can realize multi-chamber control, multi-zone temperature control, advanced heat insulation and sealing integrated intermediate flapper valve, continuous operation, high degree of automation, good product consistency, high efficiency and energy saving.

Technical Parameters
 model Effective space Load bearing
(kg)		 Maximum temperature
(℃)		 Operating temperature
(℃)		 Temperature uniformity
(℃)		 Ultimate vacuum（Pa） Pressure rise rate（Pa/h）
 3060 300*500*600 230 1200 1150 ±3 6.7X10-3 0.4
 6090 600*600H*900 500
 6130 600*600H*1300 600
 6150 600*600*1500 800

Technical Characteristics
1) Introducing advanced Japanese technology;
2) Multi-chamber combination, multi-zone temperature control;
3) Advanced heat insulation and sealing integrated intermediate flapper valve;
4) continuous operation and high degree of automation;
5) Product consistency, efficiency and energy saving.

Applications:
1) Ceramic materials
2) Capacitor
3) Composite materials
