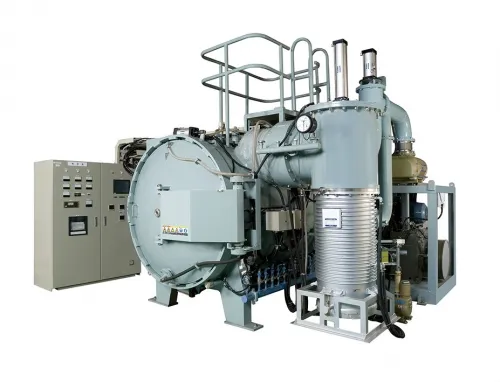

Magnetic material sintering furnace

DESCRIPTIONThe rare earth permanent magnet material NdFeB special vacuum sintering equipment can realize fully automatic operation after feeding.Technical ParametersmodelTemperature zone sizeLoading capacity(kg)Maximum temperature(℃)Ultimate p
Products Inquiry

Product Details

DESCRIPTION
The rare earth permanent magnet material NdFeB special vacuum sintering equipment can realize fully automatic operation after feeding.

Technical Parameters
 model Temperature zone size Loading capacity
(kg)		 Maximum temperature
(℃)		 Ultimate pressure
(pa)		 Pressure rise rate
(pa/h)		 Temperature uniformity
(℃)
 ZSL-100N 400*400*600 100 1300 5.6×10-3 0.4 ±3
 ZSL-300N 500*600*1200 300
(最大600)		 1300 5.6×10-3 0.4 ±3
 ZSL-500N 600*600*1450 500
(最大800)		 1300 5.6×10-3 0.4 ±3

Technical Characteristics
1）温度均匀性好，三段加热、电脑控温、PID自动调节；
2）可采用内外循环气冷系统，高效换热器，多方向均匀冷却工件，冷却速度快，冷却均匀；
3）可选用双换热器结构，大大缩短冷却时间；
4）同时保护进料烧结炉，操作箱采用全机械驱动，物料可实现任意位置停止，运行可靠，维护简便。
