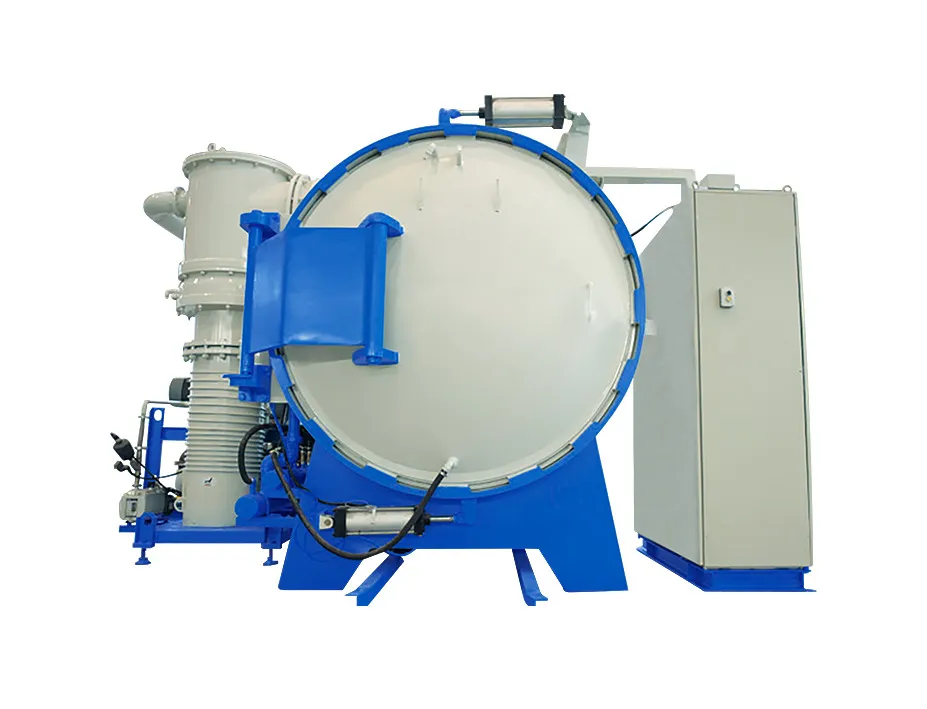

Silicon carbide vacuum sintering furnace

DESCRIPTIONIt can be used for reaction sintering, pressureless sintering and recrystallization sintering of SiC ceramic products, and can also be used for sintering other ceramic products such as silicon carbide.Technical ParametersmodelEffective spaceMaximum temp
Products Inquiry

Product Details

DESCRIPTION
It can be used for reaction sintering, pressureless sintering and recrystallization sintering of SiC ceramic products, and can also be used for sintering other ceramic products such as silicon carbide.

Technical Parameters
 model Effective space Maximum temperature（℃） Operating temperature（℃） Ultimate vacuum(Pa) Vacuum leak rate(Pa/h) Temperature uniformity(℃) power（KW） Floor area（M）
 HS-S4412 400*400*1200 2400 2300 0.01 1.33 ≤±15 180 5*6*6
 HS-S5515 500*500*1500 360 6*7*6
 HS-S6618 600*600*1800 640 7*8*6
 HS-S1015 1000*1000*1500 1800 1700 180 5*6*6
 HS-S1320 1300*1300*2000 360 6*7*6
 HS-S1530 1500*1500*300 640 7*8*3.5

Technical Characteristics
1) Independent temperature control by multi-temperature zone, good temperature uniformity;
2) Optional external circulation quick cooling system, single furnace production cycle is short;
3) A positive pressure or negative pressure carbonization process can be realized;
4) The tar, dust and tail gas generated by the carbonization process can be effectively treated;
5) The power cabinet adopts a fully sealed structure. The cabinet has its own cooling system and does not exchange heat with the outside air. The advanced temperature control system adopts the imported digital display intelligent temperature control table, which can realize data communication with PLC and touch screen control operation interface. , full Chinese temperature input control, bid farewell to the cumbersome meter temperature curve input, the system can heat up according to the given temperature rise curve, and can store 20 different 400 process heating curves.
