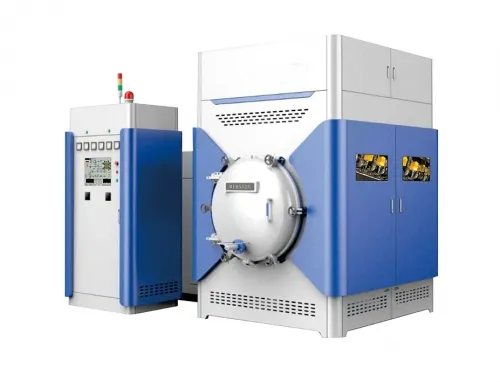

MIM vacuum degreasing and sintering integrated furnace

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

DESCRIPTION
MIM is a new near net forming technology of metal parts formed by introducing modern plastic injection molding technology into the field of powder metallurgy. It is a high and new technology developing rapidly in the field of powder metallurgy and industry in recent years. The MIM process steps are: firstly, to meet the requirements of the MIM metal powder and organic binder in a certain temperature under the condition of the appropriate method mix into uniform feeding, then after granulating in heating plasticizing state with injection molding machine into a mold cavity to obtain billet, after chemical degreasing treatment or solvent extraction method, finally the sintering densification of the final product.
Features of MIM products:
1. The geometric shape of parts has a high degree of freedom, which can be used to produce metal parts with complex shapes in a single forming just like plastic products;
2. MIM products have uniform density, good smoothness, and the surface roughness can reach Ra 0.80 ~ 1.6m. The weight range is 0.1 ~ 200g. High dimensional accuracy (±0.1% ~ ±0.3%), generally no need for follow-up processing; 3. Wide range of applicable materials, wide application fields, high utilization rate of raw materials, high degree of production automation, simple process, which can realize continuous mass production;
4, product quality is stable, reliable performance, the relative density of products can reach 95% ~ 99%, can be carburized, quenching, tempering and other heat treatment. Product strength, hardness, elongation and other mechanical properties, good wear resistance, fatigue resistance, uniform organization;
It is generally believed that the development of MIM technology will lead to a revolution of parts forming and processing technology, which is praised as "the most popular parts forming technology in the 21st century".
Production process:
1: product technical exchange → product design → mold design → mold manufacturing
2: metal, ceramic powder, adhesive → mixing → injection molding → adhesive removal → sintering → deep processing (as required)→ inspection → finished products

Technical Parameters

model	Effective space	Maximum temperature（℃）	Operating temperature（℃）	Fillable gas	Vacuum leak rate（Pa/h）	Ultimate vacuum（Pa）	Temperature uniformity（℃）	Plate area	Total power（KW）
MIM-4415	4004001500	1600℃	1500℃	N2 Ar H2	3	1	≤±3℃	8.6Square meter	160
MIM-5518	5005002000	1600℃	1500℃	N2 Ar H2	3	1	≤±5℃	Square meter	220
MIM-5527	5005002700	1600℃	1500℃	N2 Ar H2	3	1	≤±5℃	25Square meter	400

Technical Characteristics
1) The circular furnace structure and the circular heater arrangement are adopted, and the furnace temperature uniformity is good;
2) Imported insulation structure and materials, less volatility and stable product performance;
3) Multiple zones are controlled separately to adjust temperature uniformity;
4) The special structure degreasing box has good sealing effect, complete degreasing, and no pollution to the components in the furnace;
5) The equipment has the functions of flexible vacuuming, micro-positive pressure sintering, negative pressure 10-80kpa partial pressure sintering, negative pressure degreasing and H2 micro-pressure degreasing;
6) Adopt pulse degreasing system, “mouth” function, no fat loss;
7) Three-stage dewaxing system, high-efficiency capture molding agent;
8) The pre-pump filter system ensures that the vacuum pump is clean;
9) It adopts 15-inch touch screen operation, PLC centralized control, high degree of automation, one-button operation;
10) It has the functions of over-temperature and over-pressure fault alarm, mechanical automatic pressure protection, action interlocking, etc., and the equipment has high safety;
11) The equipment has remote fault diagnosis and remote software upgrades, and the service is at your side;
12) Vacuum pipe quick installation system, more efficient disassembly and maintenance;
13) Equipped with rapid cooling system, rapid cooling, and improved production efficiency;
14) Integrated installation, quick installation and commissioning.
