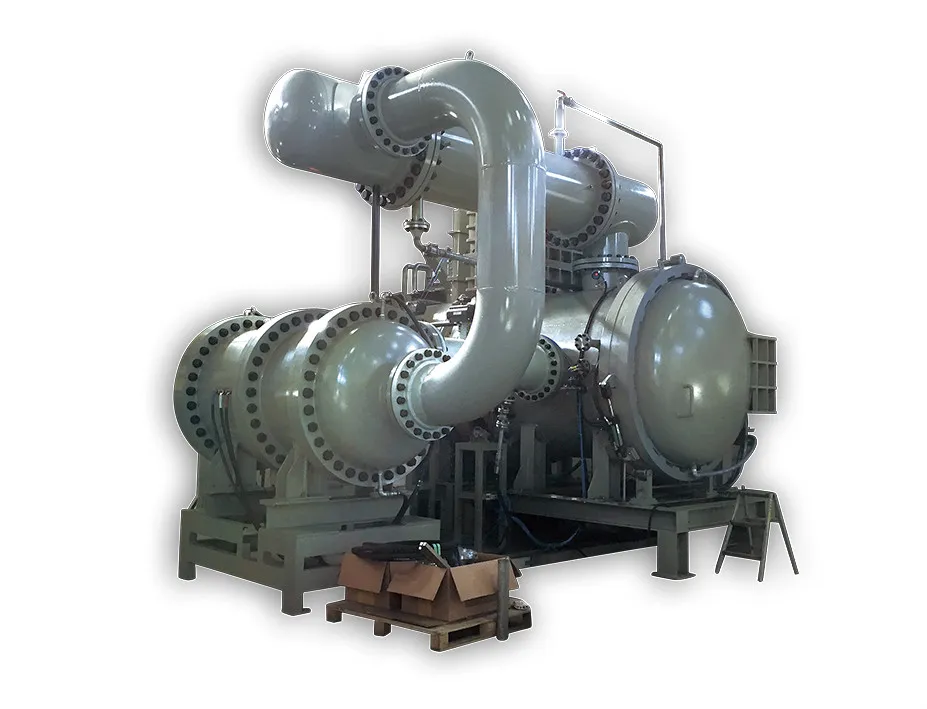

Horizontal double chamber vacuum high pressure gas quenching furnace

DESCRIPTIONThe horizontal double-chamber vacuum high-pressure gas quenching furnace is mainly used for vacuum gas quenching of tool steel, die steel, high-speed steel and ultra-high-strength steel. The heating chamber and the quenching chamber are separated, the energy-saving features are obvious,

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

DESCRIPTION
The horizontal double-chamber vacuum high-pressure gas quenching furnace is mainly used for vacuum gas quenching of tool steel, die steel, high-speed steel and ultra-high-strength steel. The heating chamber and the quenching chamber are separated, the energy-saving features are obvious, and the cooling effect is good.

Technical Parameters

model	Effective space	Maximum temperature(℃)	Cooling gas pressure（Bar)	Pressure rise rate（Pa/h）	Temperature uniformity(℃)	Furnace weight(kg)
ZRQ-335-II	300300500	1300	6或10	0.67	≤±5	50
ZRQ-446-II	400400600	1300	6或10	0.67	≤±5	100
ZRQ-669-II	600600900	1300	6或10	0.67	≤±5	300
ZRQ-7710-II	7007001000	1300	6或10	0.67	≤±5	500
ZRQ-8812-II	8008001200	1300	6或10	0.67	≤±5	800

Note: Special specifications can be customized according to user requirements.

Technical Characteristics
1) The furnace body is in the form of horizontal, double-chamber and horizontal charging structure. The method of opening the furnace door is set according to user requirements.
2) The gas quenching chamber is an independent cooling structure with fast heat exchange rate.
3) The internal material truck is an integral telescopic structure, the material runs smoothly and the time is short.
4) An axial flow high-power gas quenching fan or a centrifugal high-power gas quenching fan can be selected for the actual processing parts.
