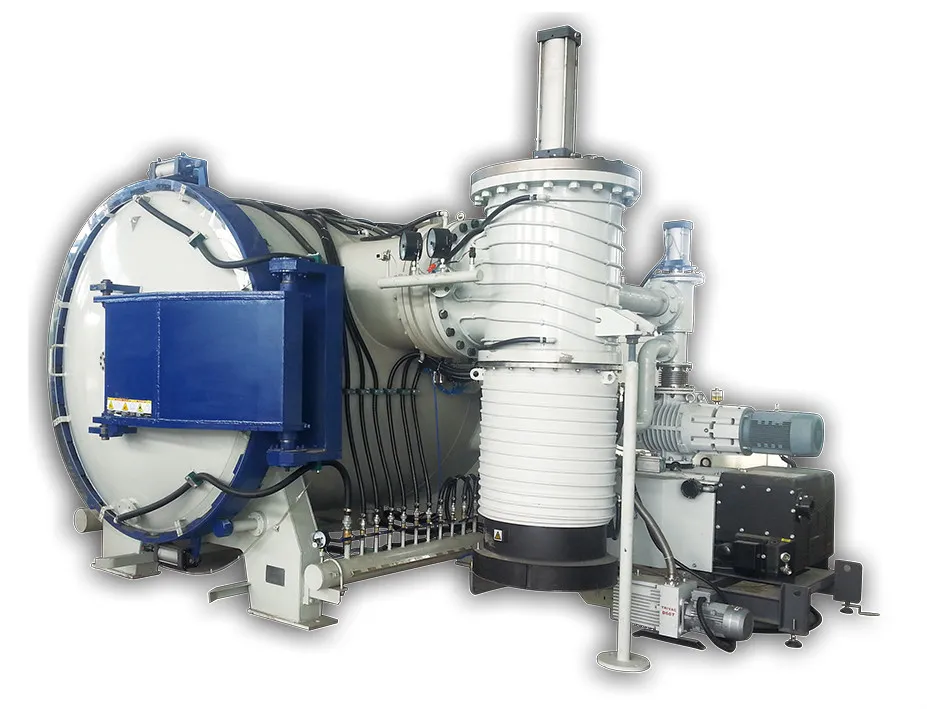

Single chamber vacuum high pressure gas quenching furnace

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

DESCRIPTION
The equipment is used for vacuum quenching of high-speed tool steel, measuring tool steel, die steel and other alloy steel materials. It has convection heating function, which can realize stage quenching, austempering and other processes, and can also be used for tempering, annealing, carburizing and nitriding. And other heat treatment processes. The maximum cooling gas pressure is 6 bar or 10 bar.
It can realize rapid and uniform heating in the low temperature section and reasonable heating chamber structure, which makes the heating more uniform, less heat loss and more energy saving.
Equipped with high-efficiency copper heat exchanger and high-speed high-pressure fan to achieve rapid cooling of the workpiece.

Technical Parameters

model	Effective space	Maximum temperature(℃)	Cooling gas pressure（Bar)	Pressure rise rate（Pa/h）	Temperature uniformity(℃)	Furnace weight(kg)
ZRQ-335	300300500	1300	6或10	0.67	≤±5	50
ZRQ-446	400400600	1300	6或10	0.67	≤±5	200
ZRQ-557	500500700	1300	6或10	0.67	≤±5	300
ZRQ-669	600600900	1300	6或10	0.67	≤±5	500
ZRQ-7710	7007001000	1300	6或10	0.67	≤±5	600
ZRQ-8812	8008001200	1300	6或10	0.67	≤±5	800
ZRQG-0405H	Ø400*500	1300	6或10	0.67	≤±5	100
ZRQG-0507H	Ø500*700	1300	6或10	0.67	≤±5	200
ZRQG-0711H	Ø700*1100	1300	6或10	0.67	≤±5	800

Technical Characteristics
1）采用钨钼全金属炉胆，适用对碳气氛敏感的材料的烧结工艺；
2）采用特殊的炉胆结构和加热布置，多区控制，超高炉温均匀性；
3）加热材料：钨、钼、石墨；
4）具备柔性抽真空、真空烧结、微正压烧结、分压烧结功能；
5）采用触摸屏操作，PLC集中控制，操作简单，可靠性高。
