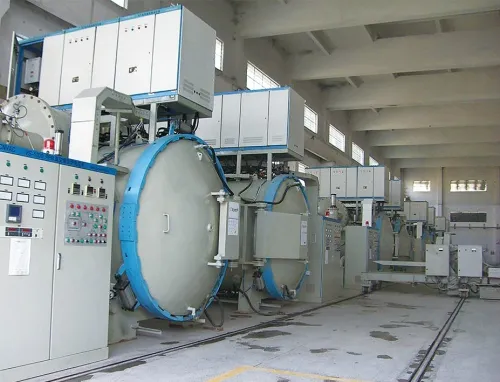

High temperature low vacuum brazing furnace

DESCRIPTIONIt is suitable for brazing of stainless steel, carbon steel, high-temperature alloy, titanium alloy and other materials such as nickel, copper, silver, titanium, etc., as well as vacuum brazing of aluminum alloy devices such as aluminum heat exchangers and radar panel antennas.Techn
Products Inquiry

Product Details

DESCRIPTION
It is suitable for brazing of stainless steel, carbon steel, high-temperature alloy, titanium alloy and other materials such as nickel, copper, silver, titanium, etc., as well as vacuum brazing of aluminum alloy devices such as aluminum heat exchangers and radar panel antennas.

Technical Parameters
 model Effective space Maximum temperature
(℃) 		 Ultimate vacuum(Pa)  Pressure rise rate(Pa/h)  Temperature uniformity(℃)  Furnace weight(Kg)
 ZSH-446 400*400*600 1300 5X10-1 0.67 ≤±5 100
 ZSL-559 500*500*900 1300 5X10-1 0.67 ≤±5 200
 ZSL-669 600*600*900 1300 5X10-1 0.67 ≤±5 250
 ZSL-6612 600*600*1200 1300 5X10-1 0.67 ≤±5 300
 ZSL-7712 700*700*1200 1300 5X10-1 0.67 ≤±5 500
 ZSL-8812 800*800*1200 1300 5X10-1 0.67 ≤±5 800
 ZSL-9920 900*900*2000 1300 5X10-1 0.67 ≤±5 2000
 ZSL-1013 1000*1100*1300 1300 5X10-1 0.67 ≤±5 1200
 ZSL-1024 1000*1100*2400 1300 5X10-1 0.67 ≤±5 2000

Technical Characteristics
1) During the welding process, the parts are in a vacuum atmosphere or a protective atmosphere, and have the advantages of no oxidation, small deformation, no pores, no flux slag, bright surface, no pollution, etc., and can realize multiple solder joints and multiple The components are welded at the same time.
2) The control system is controlled by PLC, the intelligent temperature controller controls the temperature, the control is accurate, the degree of automation is high, and the operation is simple and reliable.
