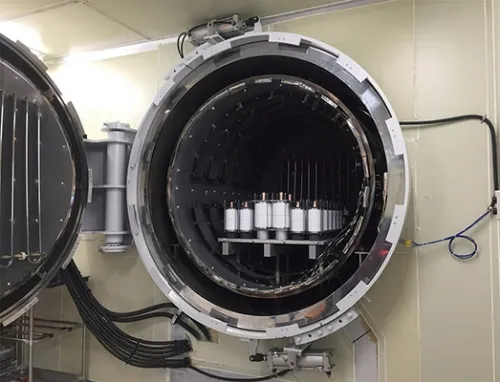

High temperature and high vacuum brazing furnace

DESCRIPTIONIt is used for vacuum brazing of stainless steel, superalloy, heat resistant alloy, etc. It is also suitable for vacuum brazing of refractory alloys or dissimilar metals containing titanium, zirconium, hafnium and molybdenum. It is widely used in the sealing of vacuum switch tubes (exti
Products Inquiry

Product Details

DESCRIPTION
It is used for vacuum brazing of stainless steel, superalloy, heat resistant alloy, etc. It is also suitable for vacuum brazing of refractory alloys or dissimilar metals containing titanium, zirconium, hafnium and molybdenum. It is widely used in the sealing of vacuum switch tubes (extinguishing chambers), as well as brazing of titanium alloys, radar screens, EGR coolers, diamond tools, iron-chromium-aluminum carriers.

Technical Parameters
 model Effective space Maximum temperature
(℃) 		 Ultimate vacuum(Pa)  Pressure rise rate(Pa/h)  Temperature uniformity(℃)  Furnace weight(Kg)
 ZRVSH-446 400*400*600 1300 5X10-4 0.67 ≤±5 100
 ZRVSL-559 500*500*900 1300 5X10-4 0.67 ≤±5 200
 ZRVSL-669 600*600*900 1300 5X10-4 0.67 ≤±5 250
 ZRVSL-6612 600*600*1200 1300 5X10-4 0.67 ≤±5 300
 ZRVSL-7712 700*700*1200 1300 5X10-4 0.67 ≤±5 500
 ZRVSL-8812 800*800*1200 1300 5X10-4 0.67 ≤±5 800
 ZRVSL-1013 1000*1000*1300 1300 5X10-4 0.67 ≤±5 1200
 ZRVSL-1017 1000*1000*1700 1300 5X10-4 0.67 ≤±5 2000
 ZRVSL-1216 1200*1200*1600 1300 5X10-4 0.67 ≤±5 2500

Technical Characteristics
It is used for vacuum brazing of stainless steel, superalloy, heat resistant alloy, etc. It is also suitable for vacuum brazing of refractory alloys or dissimilar metals containing titanium, zirconium, hafnium and molybdenum. It is widely used in the sealing of vacuum switch tubes (extinguishing chambers), as well as brazing of titanium alloys, radar screens, EGR coolers, diamond tools, iron-chromium-aluminum carriers.
