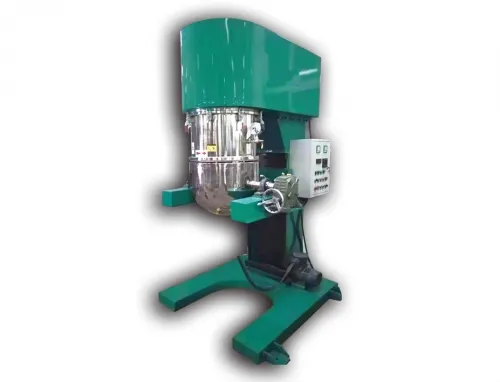

Vertical vacuum drying mixer

DESCRIPTIONMainly used for vacuum drying of cemented carbide ball abrasives, waxing or other kinds of molding agents.Technical ParametersmodelMaximum chargeStir dry speedWater temperatureUltimate vacuumpowerNet weight of equipmentEquipment

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

DESCRIPTION
Mainly used for vacuum drying of cemented carbide ball abrasives, waxing or other kinds of molding agents.

Technical Parameters

model	Maximum charge	Stir dry speed	Water temperature	Ultimate vacuum	power	Net weight of equipment	Equipment dimensions
LJB-60	60KG	26rpm	85℃	—0.8MPa	9KW	120kg	10.81.5m
LJB-120	120KG	28rpm	85℃	—0.8MPa	15KW	120kg	10.81.5m

Technical Characteristics
1) Fast drying speed, drying and adding molding agent at one time, reducing the probability of material contamination,
2) The processing time of single batch material is 60~90min (the drying time is adjusted according to the molding);
3) The molding agent is uniform and has no dead angle, and is suitable for preparation of various molding materials;
4) It is convenient to load and unload materials, and the molding agent such as alcohol can be recycled;
5) Unique mixing rod and scraping knife design, compact, evenly stirred, not easy to aggregate,
Adhesive, uniformity of material formation.
