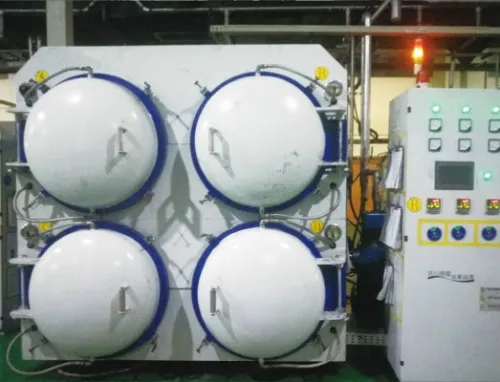

Vacuum drying oven

DESCRIPTIONThe vacuum drying furnace is mainly used for vacuum drying of alloy bars and plates in the early stage of sintering, and the equipment adopts a horizontal water circulation heating system.Technical ParametersmodelEffective spaceMaximum chargeWater
Products Inquiry

Product Details

DESCRIPTION
The vacuum drying furnace is mainly used for vacuum drying of alloy bars and plates in the early stage of sintering, and the equipment adopts a horizontal water circulation heating system.

Technical Parameters
 model Effective space Maximum charge Water temperature Ultimate vacuum power Equipment dimensions
 ZGZ-5518-II 500*500*1800x2 2T 98℃ 1000Pa 45KW 4*5*2m
 ZGZ-5518-IV 500*500*1800x4 4t 98℃ 1000Pa 80KW 4*5*3.3m

Technical Characteristics
1) Fully automatic control system;
2) The furnace body is made of high-quality steel plate, and the exterior is made of new insulation materials;
3) Double recovery filter device;
4) It can be two-group and four-group integrated;
5) The system is equipped with over temperature, water cut, insufficient water pressure, and process completion.
Alarm prompt
6) Multiple safety interlocks to protect the long-term stable operation of the equipment;
7) Roller installation in the furnace, which is used in conjunction with the same specification pressure.
