Product Details

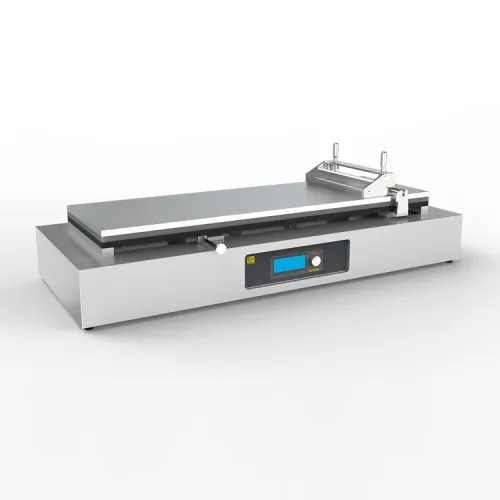

Vacuum long tape casting coater has a vacuum chuck and an oil-free vacuum pump that can be used to make long thick films with a micron-sized adjustable doctor blade. With a unique automatic propulsion unit that produces a smooth coating on any material over a length of 180 mm and a width of 600, it is an ideal tool for low-cost development of 18650 battery electrode materials.

Vacuum long tape casting coater specifications:

Working Voltage	Input: 24VDC
Power	120W
Traverse Speed	10 - 80mm/sec variable
Stroke Length	10 - 800mm adjustable by using Adjustable Position Switch
Platform	●Aluminum alloy flat vacuum chuck ●Vacuum chuck Dimensions: 800mm(L) x 250mm(W) x 25mm(H)
Film Applicator	●Built in pushing bar for using micrometer adjustable applicator. ●180 mm width Applicator with micrometer adjustable head included making coating up to 800mm(L)×180mm(W) ●Note: Thinnest film can be achieved is > 10 micron
Vacuum Pump (Optional)	A vacuum pump is required, but not included.
Max. Coating Area	800mm(L) x 250mm(W)
Accuracy of Film thickness	+/- 0.01mm
Machine Dimensions	●Without heating lid: 960mm(L) x 370mm(W) x 240mm(H) ●With heating lid: 900mm(L) x 370mm(W) x 313mm(H)
Net weight	40 kg (90 lbs)
Warranty	One Year limited with lifetime support
