Product Details

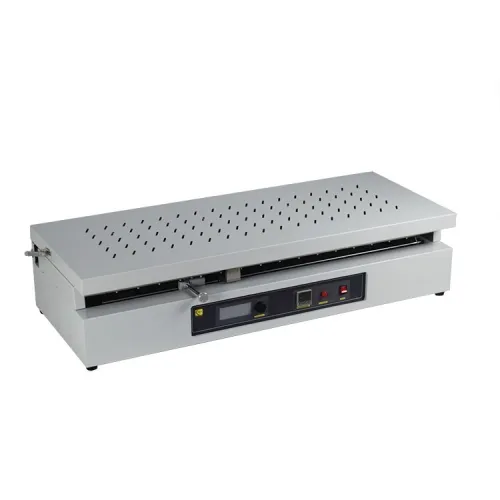

Heated vacuum doctor-blade film coater uses a vacuum chuck and an oil-free vacuum pump to adsorb the fixed substrate, so that the substrate is free from wrinkles during the coating process, thereby making the coating more uniform and smooth, and preventing the contamination of the substrate by the oil in the vacuum pump.The width of the film during the working process of the Heated vacuum doctor-blade film coater can be controlled according to the width of the film forming blade. The baffle in the middle of the blade can be moved left and right. When the baffle and the side of the blade completely overlap, the film width reaches the limit. The film length can be up to 800mm with the micrometer adjustable film machine.

Heated vacuum doctor-blade film coater specifications:

Working Voltage	AC220V, 1.6KW
Heatable Vacuum Platform	●Vacuum chuck made of aluminum alloy with the micro-size hole ●Vacuum chuck Area: 255mm(W) x 810 mm(L) ●Heating elements are installed inside chuck which can reach 120ºC Max. ●Precision digital temperature controller with +/- 1ºC stability
Film Applicator	●Built-in pushing bar for using micrometer adjustable applicator. ●180 mm width Applicator with micrometer adjustable head is included ●24VDC motor driven the pushing bar continuously to the adjustable position ●Note: Thinnest film can be achieved is > 10 micron
Max. Coating Area	●760mm(L) x 255mm(W)
The accuracy of Film thickness	●+/- 0.01mm
Travel Speed	●5 - 99mm/sec variable
Ventilation Lid With Fans	●Two venting fans are installed on the top cover
Net weight	54 kg
Warranty	One Year limited warranty and lifetime support
