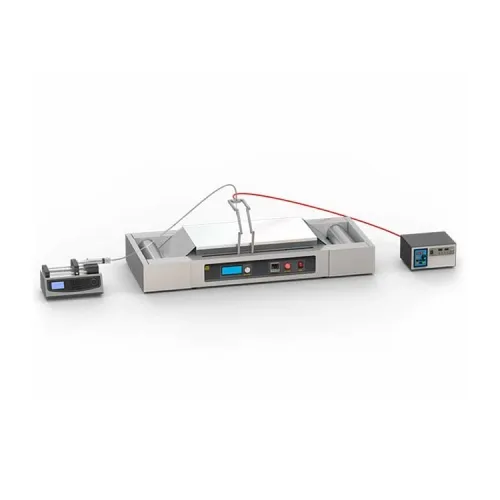

Roll to Roll Electrospinning System

•     Hight and position adjustable supporting stand

•     Removable Spraying Heads (up to 5 needles).

•     Single Voltage input cable minimizes the repulsion of the jet between the needles.

•     Distance between each needle: 25mm

•     Needle O.D.: 0.9mm

•     Needle I.D.: 0.6mm

•     Needle Length: 12mm

•     Maximum distance from needle to heating bed: 235mm

•     Minimum distance from needle to heating bed: 70mm

•     0 - 50 kV single output, 1 mA max current

•     Digital voltmeter and current meter

•     Output voltage and current can be set by using knobs on the front panel and read from the digital display

•     Constant current / constant voltage modes available

•     AC 220V, 50/60Hz, 50W max power consumption

•     Dimension: 155mm(L)×245mm (W)×125(H)

•     LCD touch screen controlled infusion syringe pump for precise solution feeding.

•     Easy to use.

•     Pumping rate 0.1 - 45mm/min

•     Travel Range: 0.001 - 120mm

•     Micro speed adjustment : 0.01 - 8mm/min

•     A 250ml Syringe is included for immediate use.

•     208 - 240 VAC

•     Dimension: 300mm(L)×265mm(W)×260 mm (H)

•     Heating bed for solution drying

•     PID temperature controller with the precision of +/- 1C.

•     Heats up to 100C

•     208 - 240 VAC

•     2000W Max Power.

•     Compact roll to roll system up to 200mm width

•     Motor rpm (Controller display) Range: 1 ~ 41rpm

•     Gear Head's reduction ratio: 100k

•     Actual substate traverse speed range: 2.2 mm/s ~ 117.2 mm/s

•     110VAC

•     Heatable Vacuum Bed with the Roll to Roll system and stand

•     Total dimensions: 805mm(L)×435mm(W)×565mm(H)

•     The height of the Vacuum Bed: 180mm.

•     The height of needle holder: 385mm.
