Product Details

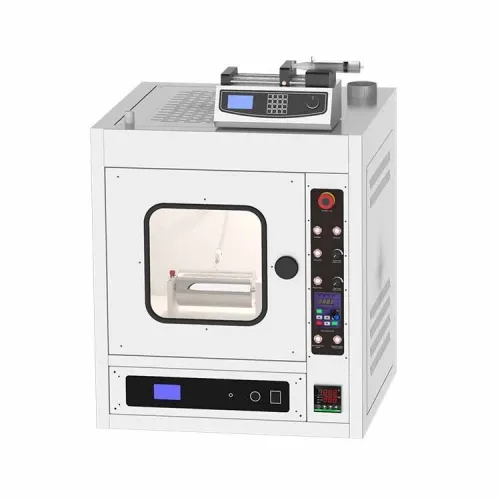

High-voltage electrospinning machine is mainly composed of four parts: liquid supply device, spinning head, high voltage power supply and collecting device.The liquid supply device adopts a professional scientific research syringe pump, which can provide continuous and stable flow of liquid, and the liquid supply speed can be adjusted to meet the needs of different types of spinning solutions.
The spinning head has multiple nozzles and the number of nozzles is optional. The bracket can be adjusted to obtain the best spinning distance and non-woven fabric with different width. The high-voltage power supply can provide long-term stable electric field and the electric field strength for electrospinning is 0-30kV.
Equipped with three sets of collecting devices, including a set of six sizes of mandrel collectors for electrospinning; a plate collector for nanofiber collection; and a set of XY-axis movable plate collectors for the preparation of film.
Compared with the traditional laboratory electrospinning equipment, the whole set of instruments has more outstanding integrity, controllability and consistency, and is safe, efficient and highly integrated.
High-voltage electrospinning machine application:
It can be used in the spinning of a variety of natural or artificial polymeric materials. The films and nanofiber prepared can be used for research and production in various fields such as filtration separation, biomedicine, new energy, and electronic information.

High-voltage electrospinning machine technical parameters:

Item		Detail
Supply voltage		AC220V，50Hz
Total power		2.5KW
High voltage power supply	Input voltage	0-30kV
High voltage power supply	Max current	0.5mA
Heating source	Heating method	Infrared heating tube
	Max temperature	Substrate temperatures up to 60℃
	Max heating power	1000W
Syringe pump	Syringe capacity	2.5ml~60ml
Syringe pump	Flow range	2.779μl/min~72.24ml/min
Collector	Mandrel collector	Six sets with various size: 200mm × φ100, 25, 12, 7, 6.0, 2.0mm; Actuator: brushless motor; mandrel shaft speed: 300-4000 rpm; used for electrospinning
	Plate collector	Dimensions: 320mm ×100mm × 2mm; Material: Stainless steel; for nanowire collection
	Y-axis movable plate collector	Dimensions: 300mm × 200mm × 5mm; Material: Stainless steel; used to prepare film, computer program to control the way of moving
