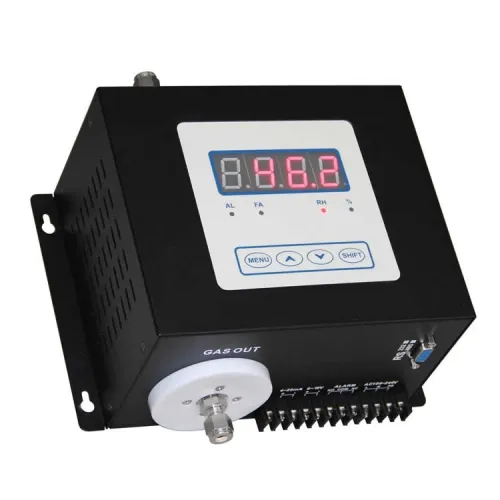

Flue gas humidity analyzer

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Flue gas humidity analyzer uses imported sensors to ensure the accuracy and service life of the instrument. The analyzer is easy to operate, has a long service life and is easy to maintain.
Flue gas humidity analyzer main features:
1. The imported sensor chip could efficiently guarantee the accuracy and serving life of the transmitter;
2. The internal cavity adopts 316F material with strong corrosive-resistance;
3. Expanded function can be added to do an accurate measurement to the high-temperature dew point;
4. Wall mount mode is convenient for installation;
5. Display modes of absolute humidity, relative humidity or high-temperature dew point can be provided (please indicate the mode when ordering).

Flue gas humidity analyzer technical parameters:

Test principle	resistance-capacitive principle
Display mode	4 bits LED display
Test range	Absolute humidity: 0 ~ 40%VOL Relative humidity: 0 ~ 100%RH High-temperature dew point:-20 ~ +100℃ (only one mode can be displayed, so please indicate the message when ordering)
Accuracy	≤±1.5%FS
Repeatability	≤±1%
Response time	T₉₀≤15S
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 0-10V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication mode	RS232(default) or RS485
Power supply	AC100 ~ 240V 50/60Hz
Sample gas temperature	0 ~ 170℃
Sampling mode	sample gas pass-in
Gas circuit port	NPT 1/4 internal thread
Sample gas composition	no flammable gas, no strongly corrosive gas
Appearance size	10mm×220mm×250mm（H×W×D）
Serving life	＞24 months (under normal use)
Install mode	wall mount
