Product Details

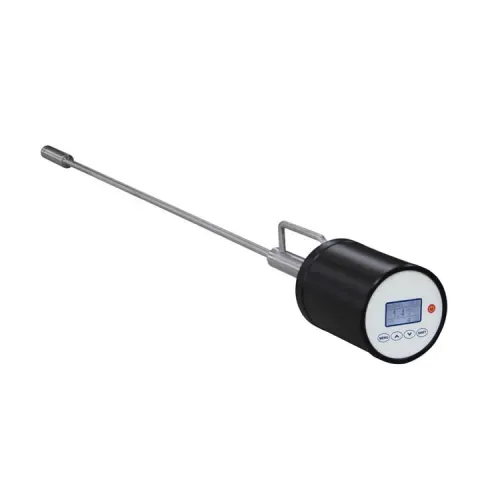

Portable flue gas humidity analyzer adopts imported capacitive sensor, featuring fast response and high measurement accuracy. this humidity analyzer has a friendly man-machine dialogue menu and is intuitive to operate.
Portable flue gas humidity analyzer main features:
1.Portable design, compact structure, small size, easy to carry;
2. Built-in large-capacity rechargeable lithium battery, easy to use in the environment without AC power, charge the lithium battery at the same time when using external power supply, can be used continuously for more than 168 hours;
3. 10000 historical data storage functions, the storage period can be set freely;
4. With historical data export function, the exported file format is .TXT text file;
5. Built-in filter diameter 0.5 micron PTFE filter can effectively protect the sensor;
According to the user's ordering requirements, the relative humidity, absolute humidity or high temperature dew point display mode can be provided separately (please specify when ordering).

Portable flue gas humidity analyzer technical parameters:

Test principle	capacitive
Display mode	128×64 dot matrix LCD
Test range	Volume absolute humidity: 0 ~ 40.0% VOL Relative humidity: 0 ~ 100% RH High temperature dew point: -20 ~ +100 °C Sample gas temperature: -20 ~ +180 °C (Only one mode can be displayed at the same time, please specify when ordering)
Measurement accuracy	<±2.0% FS (comprehensive accuracy, temperature accuracy <±0.5°C)
Repeatability	<±1%
Response time	T₉₀ ≤ 15S
Resolution	Temperature and dew point 0.1℃, relative humidity and absolute humidity 0.1%
Ambient humidity	<80% RH
Working temperature	Meter: -10 ~ +50 °C, probe: 0 ~ 170 °C
Sampling method	Direct insert mode
Battery capacity	11000mAH
Power supply	AC220V, 50/60Hz
Service life	sensor≤36 months (under normal use conditions), meter≥6 years
dimensions	Instrument: Φ125mm × 165mm Probe: Φ28mm, regular length 1m, other lengths can be customized
Weight	4Kg
Install mode	Portable
