Product Details

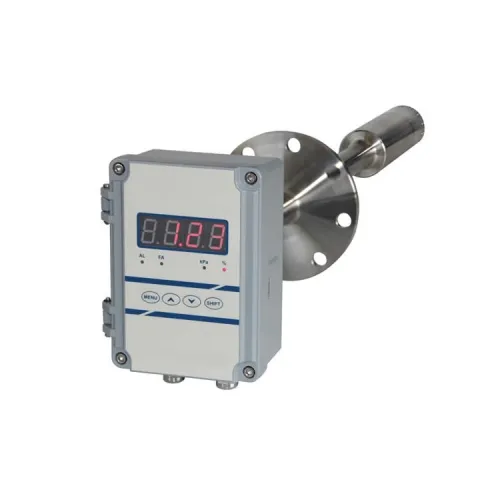

Small flue gas humidity analyzer can be used under a high-temperature circumstance within 650℃ for a long time. The probe is made of special material, making its corrosion-resistance stronger.The shell of the gauge is of high-level protection and is suitable for outdoor use under extreme weather occasion.
Small flue gas humidity analyzer main features:
1.The integrative design is convenient for the installation, and reduces the influence from external interference on the measured value;
2.The imported sensor chip with original packaging guarantees the serving life of the analyzer;
3.Flange installation mode makes the installation simple and convenient;
4.Function of auto-compensation for temperature with high accuracy eliminates the influence from the environment temperature;
5.The design of two-stage dust filtration could filtrate the dust and acid liquid efficiently;
6.Simple operation, long serving life and easy to maintain.

Small flue gas humidity analyzer technical parameters:

Test principle	wet-dry oxygen principle(ceramic humidity sensing)
Display mode	4 bits LED display
Test Range	0 ~ 50/85(%VOL/KPa) H₂O
Resolution	0.01%
Accuracy	＜±2%FS
Repeatability	＜±1%
Response time	T₉₀＜20S
Operating temperature	Gauge: -10 ~ +50℃ Probe,normal type:0 ~ 350℃ High-temperature type:0 ~ 500℃ Special type:0 ~ 650℃
Sampling mode	inserting mode
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 0-5V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication Port	RS232
Power supply	AC220V±10% 50/60Hz，power dissipation＜20VA
Protection	316F for feeler lever, aluminum-cast waterproof box for gauge Case (IP65)
Serving Life	gauge＞48months, sensor＞36months(under normal use)
Length of the probe	1 meter in usual(the inserting length is customizable)
Install mode	plug-in, DN65 standard flange
