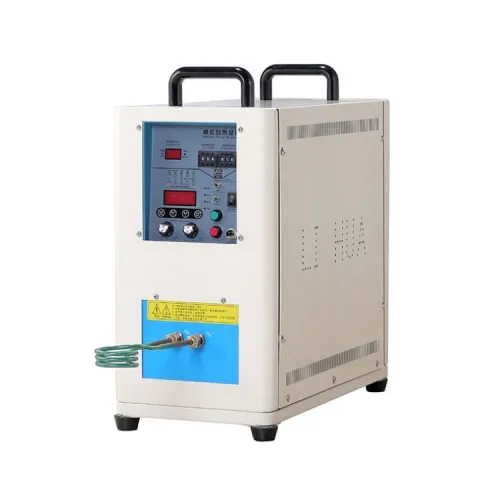

7KW Dual Station Bench Top Induction Heater with Timer Control

Dual Station 7KW Induction Heater is designed for material research lab to quickly melt and perform heat treating to metallic materials up to 1kg. The 2m long power cable allows heating station and the control station being located up to 2m from each other for operation safety.Technical paramete

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Working Voltage	208-240V AC, 50/60 Hz, Single Phase
Max. Input Current	●34 Amp (Min. 40A breaker required) ●Power cable included (It is suggested to use twist-lock plug with 10AWG power cable)
Output Frequency	30-80 kHz
Heating Current	200-600 Amp
Max. Input Power	7 KW
Duty Cycle	80%
Max. Distance Between Heater and Controller	2m
Max. Sample Weight	1 kg
Option Control Station	●Automatic timer control or Manual control selectable ●Manual Control: by Foot Pedal ●Automatic Heating Time: 1-99 Seconds ●Automatic Dwell Time: 1-99 Seconds ●Automatic Cooling Time: 1-99 Seconds ●One Port is built in to connect to the temperature controller and thermal couple, which can control temperature automatically via the optional control unit.
Air Cooling	Rear Fan
Water Cooling	●Flow rate: 2~5 L/Min ●Pressure: 0.2 MPa (29 Psi) ●Protection: Over-pressure and over temperature switch ●Tap water is acceptable, but using Recirculating Water Chiller is highly recommended.
Induction Coil & Accessories	Two coils with the following dimensions are included: Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H) Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H) Foot Pedal with Cable and water connector are included
Display	Digital display shows output power and current
Product Dimensions	●Control Station: 18" x 8" x 17" ●Heating Station: 12" x 8" x 13"
Warranty	One Year limited warranty with lifetime support
Net Weight	25 kg (55 lbs)
