Product Details

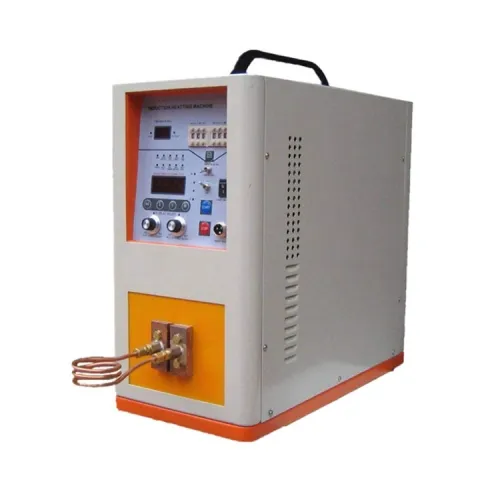

HS-50K-15AB is the 15KW induction heating power supply of the HS-SP series vacuum induction melting system

Technical parameters of induction heater:

Working Voltage	3 Phases,208-240V AC, 50/60 Hz
Max. Input Current	●52A (Min. 60A breaker required) ●Power cable included (Plug is not included)
Output Frequency	30-80 kHz
Heating Current	200-600 Amp
Max. Input Power	15 KW
Duty Cycle	100%
Max. Distance Between Heater and Controller	2m
Max. Sample Weight	1 kg
Timer Control	Automatic timer control or Manual control selectable ●Manual Control: by Foot Pedal ●Automatic Heating Time: 1-99 Seconds ●Automatic Dwell Time: 1-99 Seconds ●Automatic Cooling Time: 1-99 Seconds
Water Cooling	●Flowrate: >10 L/Min ●Pressure: ≥0.2 MPa (29 Psi) ●Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Please to order separately ●Protection: Overpressure and over temperature switch
Induction Coil	The copper coil is not included
Display	Digital display shows output power and current
Product Dimensions	18"(L) x 8"(W) x 17"(H)
Warranty	One Year limited warranty with lifetime support (Consumable parts like coils, fittings and clamps are not covered by the warranty)
Warning	To prevent internal circuitry damage: ●Never allow the inductive current to exceed 800 A when the unit is in use. ●The maximum time duration for running the unit at the 600~800 A working current range should not exceed 60 seconds.
Net Weight	28 kg (62 lbs)
