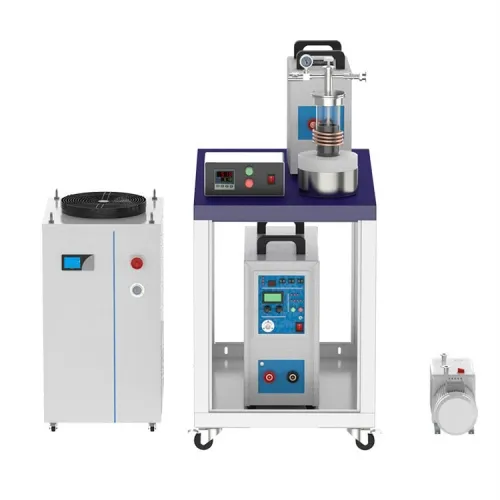

Vacuum induction melting furnace 15KW

The vacuum induction melting furnace is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.Technical parameters of vacuum induction furnace:Prod

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

The vacuum induction melting furnace is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.

Technical parameters of vacuum induction furnace:

Product model	Vacuum induction melting furnace HS-15VIMF
Main features	1. Complete fireproof device, including the holder at the bottom of the crucible, the holder and the lid of the crucible, and made of alumina. 2, water pressure and temperature automatic protection, output power over the power supply automatic protection.
	SP-15A electric induction heater 1. Power supply: 220V 50-60Hz 70A 2. Output power: 2-15KW 3. Output frequency: 30-110 KHz 4. Duty cycle: 80% 5. Automatic heating time: 1-99s 6. Automatic cooling time: 1-99s 7. Induction coil: outer diameter Φ70mm, inner diameter Φ65mm, height 80mm 8. Quartz tube: outer diameter Φ60mm, inner diameter 57 mm, length 250 mm 9. Vacuum flange: KF25 joint 10. Quartz crucible: outer diameter Φ58mm, inner diameter Φ36mm, height 78mm, capacity 79mL 11. Size: 470mm × 305mm × 435mm
	Cold water machine 1. Temperature: 5-35℃ 2. Water flow rate: 4L/min 3. Water tank: 4L 4. Size: 460mm×220mm×711mm
	Vacuum pump 1. Power: 550W 2. Ratio: 226 L / min
	Mobile furnace cart 1. Size: 800mm×600mm×597mm
Product specification	Weight: 105kg
Standard accessories	1	HS-15A electric induction heater	1 set
	2	Quartz tube	1
	3	Quartz crucible	1
	4	Vacuum flange	1 set
	5	Water Chiller	1 set
	6	Vacuum pump	1 set
	7	Mobile cart	1 set
