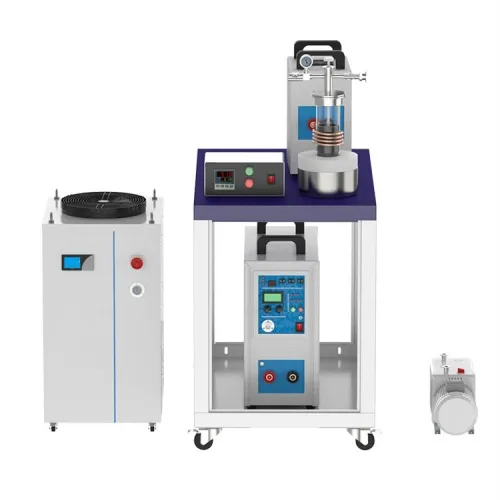

Vacuum induction melting furnace 25KW

The vacuum induction melting furnace is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.Technical parameters of vacuum induction melting furnace:&n

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

The vacuum induction melting furnace is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.

Technical parameters of vacuum induction melting furnace:

Product model	Vacuum induction melting furnace HS-25VIM
Main features	1. Equipped with a complete refractory device, including the support at the bottom of the crucible, the support for the crucible and the cover, and made of alumina. 2. Automatic protection of water pressure and temperature, output power exceeds automatic protection of power supply.
Technical parameters	HS-25A electric induction heater 1. Power supply: 220 V 50-60 Hz 42 A 2. Output power: 2-25KW 3. Output frequency: 30-80 KHz 4. Duty cycle: 80% 5. Automatic heating time: 1-99s 6. Automatic cooling time: 1-99s 7. Induction coil: outer diameter Φ95mm, inner diameter Φ85mm, height 50mm 8. Quartz tube: outer diameter Φ80mm, inner diameter 75 mm, length 300 mm 9. Vacuum flange: KF25 joint 10. Quartz crucible: outer diameter Φ58mm, inner diameter Φ36mm, height 78mm, capacity 79mL 11. Size: 470mm × 305mm × 435mm
	Cold water machine 1. Temperature: 5-35℃ 2. Water flow rate: 4L/min 3. Water tank: 4L 4. Size: 460mm×220mm×711mm
	Vacuum pump 1. Power: 550W 2. Ratio: 226 L / min
	Mobile furnace frame 1. Size: 800mm×600mm×597mm
Product specification	Weight: 105 kg
Standard accessories	1	HS-25A electric induction heater	1 set
	2	Quartz tube	1
	3	Quartz crucible	1
	4	Vacuum flange	1 set
	5	Cold water machine	1 set
	6	Vacuum pump	1 set
	7	Mobile furnace frame	1 set
