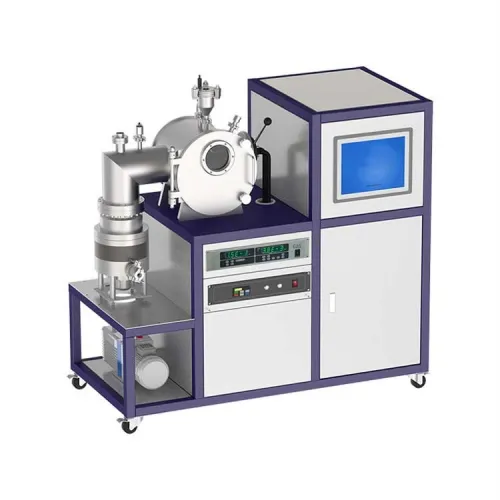

35KW vacuum induction melting furnace with stainless steel water-cooled chamber

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

This product is a vacuum induction furnace with induction heating, equipment melting temperature can reach 2000 ℃. This furnace adopts stainless steel water-cooled chamber, equipped with quartz observation window to observe sample melting, which is suitable for metal sample melting and heat treatment, phase diagram study. The equipment uses high-quality high-frequency induction power supply, the largest support for custom 60KW high-frequency induction power supply. The equipment is equipped with a high-vacuum molecular pump set, which can effectively improve the vacuum of the substrate and thereby improve the melting quality. The equipment is also equipped with a lifting platform, a flip handle and a water-cooled copper crucible, which is convenient for the operator to perform casting and sampling operations after melting.
The equipment has comprehensive functions, fast melting, easy to use, energy saving and environmental protection, which is very suitable for laboratory research on metal samples.

Technical parameters of vacuum induction melting furnace:

Vacuum induction melting furnace HS-IM300-35A
Induction power supply	Frequency	high frequency
Induction power supply	power	35KW can be customized, the maximum is 60KW
Vacuum chamber	Chamber material	Stainless steel
	Chamber size	φ300mm x 300mm
	Cooling system	Water-cooled electrode, water-cooled cavity, water-cooled mold
	Observation window	Main observation window φ120mm
	Lifting platform	0 ~ 40mm lifting range
	Accessories	Infrared temperature measurement window, vacuum funnel
	Water cooling interface	φ8mm quick plug interface
Vacuum system	Product model	HS-GZK103-A
	Molecular pump	HS-600
	Pumping interface	CF160
	Exhaust interface	KF16
	Backing pump	Rotary vane pump
	Ultimate vacuum	1.0E-5Pa
	Pumping rate	Molecular pump: 600L / S Rotary vane pump: 1.1L / S Comprehensive pumping performance: 20 minutes Vacuum degree: 1.0E-3Pa
	Vacuum measurement	Compound vacuum gauge
	Power supply	AC 220V 50 / 60Hz
Crucible	Graphite melting crucible	Maximum support φ60mm x 80mm
Crucible	Alumina insulated crucible	Maximum support φ120mm x 90mm
Other	Supply voltage	AC220V 50Hz or three-phase 380V
	Total power	Reference induction power
	Overall size	1550mm x 700mm x 1400mm
	Total Weight	900kg
