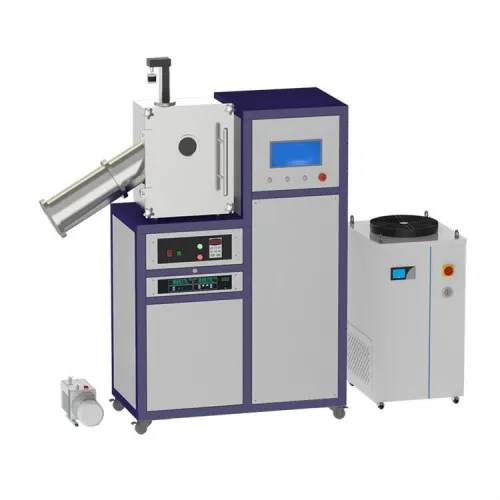

HSKY-BTF-500 is a lab-scale vacuum melt spinning system for preparing amorphous metallic ribbons. In this technique, metal ingots (<50g) are melted via induction heating method and then propelled by over-pressurizing the crucible.

Technical parameters of vacuum melt spinning system:

Features	The complete system consists of the stainless steel vacuum chamber, vacuum system, induction heating system, rack system and discharging tubular collector. Copper roller linear speed: 5 ~ 60m / S Melting metallic samples: 5g ~ 50g/Per batch Vacuum casting device (not included in standard configuration)
Power supply	Voltage: AC380V, three-phase Maximum power 15kw (60A air switch required)
Vacuum chamber & vacuum pump	Vacuum chamber size: Φ 500mm x 400mm L Hinged cavity door with quartz observation window Molecular pump system is installed in the equipment Vacuum: 5 x10E-5 Torr (within 20 minutes) Limiting vacuum 10e-7 Torr (to be baked)
Induction heater & temp controller	Heating power: 15kw; frequency range: 30 ~ 80kHz Melting sample quantity: 10 - 50g (depending on the material) Accurate temperature control system, B-type thermocouple, 30 temperature rise and fall procedures can be set Temperature control accuracy: + / - 2℃
Crucibles	Quartz crucible or BN crucible can be used according to customers' requirements
Spinning wheel	Standard copper roller cooling without water Linear speed of copper roller: 5 ~ 60m / S Optional: Optional water-cooled copper roller with a maximum sample handling capacity of 500g Optional vacuum casting module
Optional accessories	Casting accessories (casting, spray casting) can be purchased according to requirements The water cooling system can be customized for the casting copper mold according to the requirements
Dimension	2000×1100×1800mm(L×W×H)
Weight	~800Kg
Certificate	CE certification
