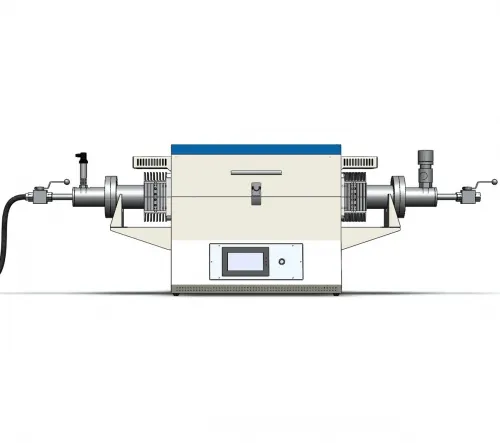

Laboratory High Temperature High Pressure Tube Furnace-HS-HS-85IT

Application:High temperature high pressure sintering furnace is mainly used for special functional ceramics powder or certain density sample’s heat treatment which need high pressure about 20 MPa, to realize ceramic material high pressure sintering.Model No.HS-HS-85I

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Application:
High temperature high pressure sintering furnace is mainly used for special functional ceramics powder or certain density sample’s heat treatment which need high pressure about 20 MPa, to realize ceramic material high pressure sintering.

Model No.	HS-HS-85IT
Tube material	Ultrahigh temperature alloy
Tube diameter	Ф85mm
Tube length	1000mm
Heating length	440mm
Constant heating zone	200mm
Sealing method	Pressure flange
Pressure measured	Semiconductor pressure gauge
Over-pressure protective	Safety relief valve
Pressure adjust	Manual and Auto adjustable
Over temperature alarm	Over-temperature power off
Working temperature	≦1100℃
Working pressure	≦20MPa @800℃ ≦12MPa @900℃ ≦6MPa @1000℃ ≦4MPa @1100℃
Temper accuracy	±1℃
Temper control mode	AI-PID 30Programmable control
Display	7” LCD Touch Panel
Working gas	N2,Ar2,O2 and other non-corrosive gas
Power supply	AC110V/AC220V 50Hz/60Hz
Warranty	12 month warranty with whole life technical supporting
