Product Details

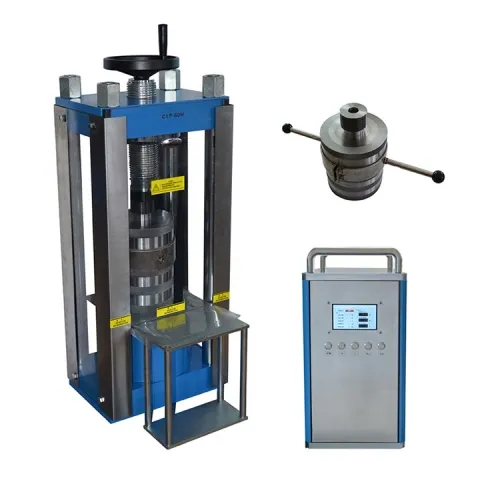

The HS-500CIP-60MAF ultra-high pressure cold isostatic press is to place the sample product in a closed container filled with liquid. After the power is applied, the pressure applied by the liquid on each surface of the sample is equal. In a high-pressure environment, the density of the sample product becomes large, the gap of the sample particles becomes smaller and the desired shape is obtained. With the advancement of science and technology and our in-depth study of powder materials, isostatic presses are increasingly used in the molding of powder metallurgy, composite materials, refractory materials, ceramics, and hard alloys. The CY-500CIP-60MAF ultra-high pressure cold isostatic press is designed for the material research department of colleges and universities and scientific research institutes that need small pieces of analytical samples. It has the characteristics of small size, reliable operation and simple operation.

Technical parameters of ultra-high pressure cold isostatic press:

Product name	HS-500CIP-60MAF ultra high pressure cold isostatic press
Main feature	The machine adopts LCD display, automatic control of pressurization process, program pressurization - program pressure maintenance - timing pressure relief; Input mold cavity diameter program to automatically convert the pressure of the sample.
Technical parameters	Pressure range of electric press: 0-150T power supply: 220V 50Hz power: 1.5KW Pressure holding time: 0-999 minutes Piston diameter: φ200mm the maximum piston stroke: 50mm Space size: 260 × 400 × 410mm Mold withstands maximum pressure: 500Mpa Pressure chamber: φ60×150mm Mold weight: 65Kg Mold size: Φ210×350mm
Product specifications	Electric cold isostatic press size: 850 × 500 × 1100mm; Electric cold isostatic press weight: 520kg
