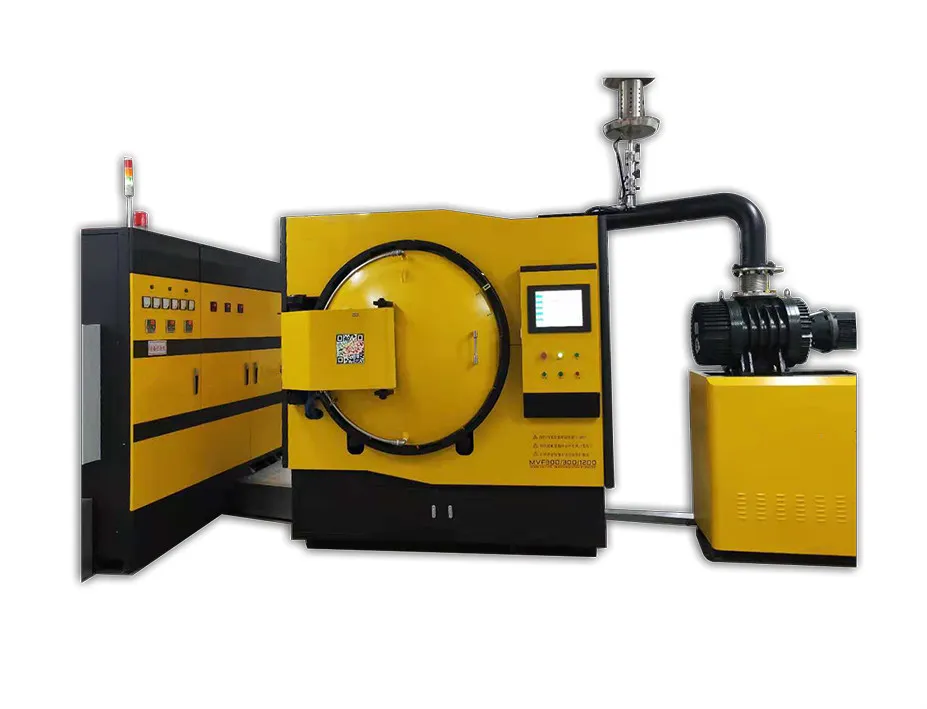

Tungsten-molybdenum metal thermal field high vacuum sintering furnace

DESCRIPTIONThe equipment is mainly used for the sintering of titanium alloy, nickel-based alloy, tungsten alloy, high specific gravity alloy, molybdenum alloy, high-temperature alloy, etc.; the highest sintering temperature is as follows: 1300 °C, 1600 °C, 2000 °C, horizontally. Struct

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

DESCRIPTION
The equipment is mainly used for the sintering of titanium alloy, nickel-based alloy, tungsten alloy, high specific gravity alloy, molybdenum alloy, high-temperature alloy, etc.; the highest sintering temperature is as follows: 1300 °C, 1600 °C, 2000 °C, horizontally. Structure and vertical structure are available for customers to choose.

Technical Parameters

model	Effective space	Maximum temperature（℃）	Operating temperature（℃）	Fillable gas	Vacuum leak rate（Pa/h）	Ultimate vacuum（Pa）	Temperature uniformity（℃）	Plate area	Total power（KW）
MVF-3390	300300900	1600	1500	N2 Ar H2	0.67	6.7x10-4	≤±3	≤3	160
MVF-4412	4004001200							≤4	260
MVF- V610	Ø600*1000							≤4	260
MVF-H-V46	Ø400*600	2000	1850	N2 Ar H2	0.67	6.7x10-4	≤±5	≤5	140
MVF-H-V610	Ø600*1000	2000	1850	N2 Ar H2	0.67	6.7x10-4	≤±5	≤6	320

Technical Characteristics

1）采用钨钼全金属炉胆，使用对碳气氛敏感的材料的烧结工艺。

2）采用特殊的炉胆结构和加热器布置，多区控制，超高炉温均匀性。

3）加热材料：钨、钼

4）具备柔性抽真空、真空烧结、微正压烧结、分压烧结功能；

5）金属屏烧结炉采用触摸屏操作，PLC集中控制，
