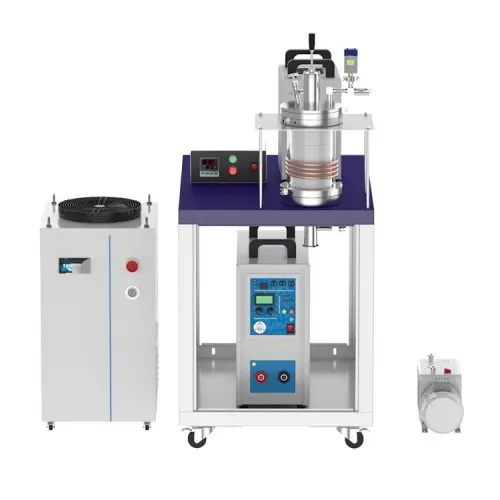

| Induction Heater |
Working Voltage: 220V, 50/ 60Hz, Three Phase
Working Current: 5~52 Amps (60A breaker required)
Max. Input Power: 15 KW
Output Frequency: 30 - 80 kHz
Duty Cycle: 80%
Induction Coil: 150mm(OD) x 140mm(ID) x 65mm(H)
Air Cooling: Rear Fan
Protection: Automatic water pressure, over-temperature, and overpower protection
Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder and cover
|
| Temp. Controller & Thermocouple |
Precision digital temperature controller with Automatic PID tunning
30 segments programmable for controlling heating and cooling rate as well as dwell time.
Overheating & thermocouple failure protection.
+/- 3℃ temperature accuracy.
Thermocouple: B type (1/4"x10"L)
8℃/second (1200℃~1500℃)3℃~6℃/second (1500℃~1700℃)Continuous Working Temp. Range: 1000℃~2000℃Max. Heating Rate: 10℃/second (1000℃-1200℃) |
| Graphite Crucible & Refractory liners |
High Purity Graphite Crucible: 2" OD x 1.57"ID x 4" Depth (4.3'' Height) Crucible with multi-cavity is included for induction metal melting.
6 mm dia. Cavity: 16
8 mm dia. Cavity: 12Three-layer special design refractory liner can withstand temperature up to 2000℃. |
| Sealing Flanges & Quartz Chamber |
Two-end Open Quartz Tube is included with dimensions of 130mm(OD) x 122mm(ID) x 360mm(L)
Top Flange: Stainless steel hinged type flange with 1/4'' thermocouple feedthrough, needle valve and bard fitting.
Bottom Flange: Stainless steel flange with needle valve and KF-25 vacuum port.
KF25 right angle valve& clamps and 1000mm long SS bellows are included for connecting to vacuum pum
|
| Pressure Sensor |
Anti-Corrosive Capacitance Diaphragm Gauge (Gas Independent), measurement range upto 3.8x10E-5 torr
One 24V,1A DC power adapter is included and ready to use. Input voltage for the adapter is 110~240V Single Phase.
|
| Flow Meter |
Compact Direct Read Flow Meter, 100-1000 cc/min. with 1/4NPT
Accuracy: 4%
|
| Water Chiller |
Temperature range: 5 - 30℃
Water Flow Rate: > 16 L/m,
Water pressure: 40PSI
Note: It is recommended to use specific coolant to get the best performance.
|
| Vacuum Pump |
One 156L/m Rotary Vane Vacuum Pump is included
Rate: 156 L/min up to 10e-2 torr vacuum.
Max. Power Consumption: 0.4KW / 0.37KWFor US customer, 110V Vacuum pump will be includedIf you choose high-speed turbo-pump, vacuum level can reach 10- 6 torr
|
| Heavy Duty Mobile Cart |
Structure: Steel Frame Mobile Cart600mm(L) x 800mm(W) surface for placing Induction Heater & Quartz Tube with Flange
|
| Protective Shield |
For Non-UL Certified version, a protective shield made of phenolic sheets will be provided.For UL Certified version, a clear protective shield made of polycarbonate will be provided.The protective shield is to be placed around the quartz tube for safe operation
|
| Product Dimensions |
Induction Heater: 18.5"(L) x 12"(W) x 17"(H) (520mm x 520mm x 450mm)Water Chiller: 18"(L) x 18.7"(W) x 30"(H) (460mm x 475mm x 762mm)Heavy Duty Mobile Cart: 600mm(L) x 800mm(W) x 597mm(H)
|
| Warranty |
One year limited warranty with lifetime support
Consumable parts such as processing tube, refractory liners, o-rings, and heating coil are not covered by the warranty
|
| Warning |
Attention: Protective inert gas must be continuously filled throughout the experiment in order to protect the graphite crucible and C thermocouple. The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min)
The Induction melting system is designed for use under vacuum and low pressure < 0.02 MPa
Attention: A two-stage pressure regulator must be installed on gas cylinder to limit the pressure to below 3 PSI for safe operation.
Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heat process
|
| Net Weight |
300 lbs |
