Product Details

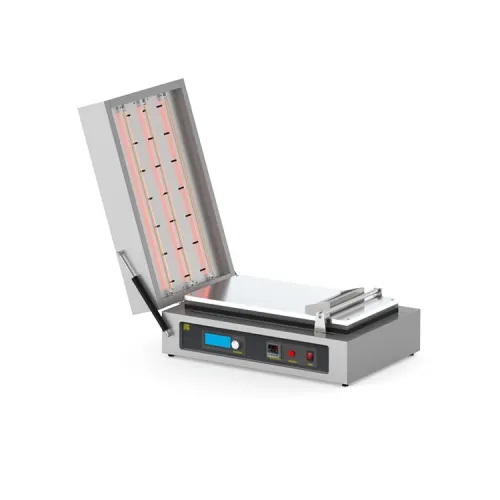

Compact automatic tape casting drying coater is widely used in various high-temperature coating research, such as ceramic thin films, crystal thin films, battery material thin films, special nano thin films, which can adapt to the film forming technology under high temperature conditions in the future development. This automatic tape casting coater pushes the precision film applicator (wire bar or doctor blade) at a uniform speed to achieve a smooth and uniform coating effect. The speed of film applicator (wire bar or doctor blade) can be controlled according to personal needs. The substrate is fixed by vacuum adsorption, so that the substrate is free of wrinkles during the coating process, and the coating is smoother. After coating, the upper cover can heat and dry the film, and the temperature control accuracy is ±1℃. It is especially suitable for the preparation of solid electrolyte and lithium battery electrodes.
Main features:
1. With top automatic drying function.
2. Use vacuum adsorption to fix the substrate.
3. Uniform coating.

Technical Parameters:

Power supply	220VAC, 50 Hz
Heating power	2500W
Coating speed	10mm/s-100mm/s
Speed control precision	1mm/sec
Heating method	Top dryer
Heating temperature	≤120℃
Temperature control accuracy	±1℃
Thermal uniformity	Within ±1%
Film applicator	Doctor blade or wire bar
Maximum stroke length	420mm
Vacuum chuck area	A4/A3
Vacuum panel size	345mm*540mm
